Product Description
Description: Power Relay • Mounting Type: Socketable • Coil Voltage: 5VDC • Contact Configuration: 2C DPDT • Contact Rating (Current): 8 A • Switching Voltage: 400VAC - Max • Coil Current: 100 mA • Coil Type: Non Latching • Termination Style: Plug In
| Product Information | | Resources |
| Manufacturer | Finder | | Product Category | Relays | | Product Sub Category | Power Relay | | Series | 40 Series | | Model | Type 40.52 |
| | |
Product Attribute
| Attribute Value
|
| Mounting Type | Socketable |
| Coil Voltage | 5VDC |
| Contact Configuration | 2C DPDT |
| Contact Rating (Current) | 8 A |
| Switching Voltage | 400VAC - Max |
| Coil Current | 100 mA |
| Coil Type | Non Latching |
| Termination Style | Plug In |
| Seal Rating | Sealed - Flux Protection |
| Must Operate Voltage | 3.7 VDC |
| Must Release Voltage | 1 VDC |
| Operate Time | 12 ms |
| Release Time | 4 ms |
| Operating Temperature | -40°C ~ 85°C |
| Contact Material | Silver Nickel (AgNi) |
| Relay Type | General Purpose |

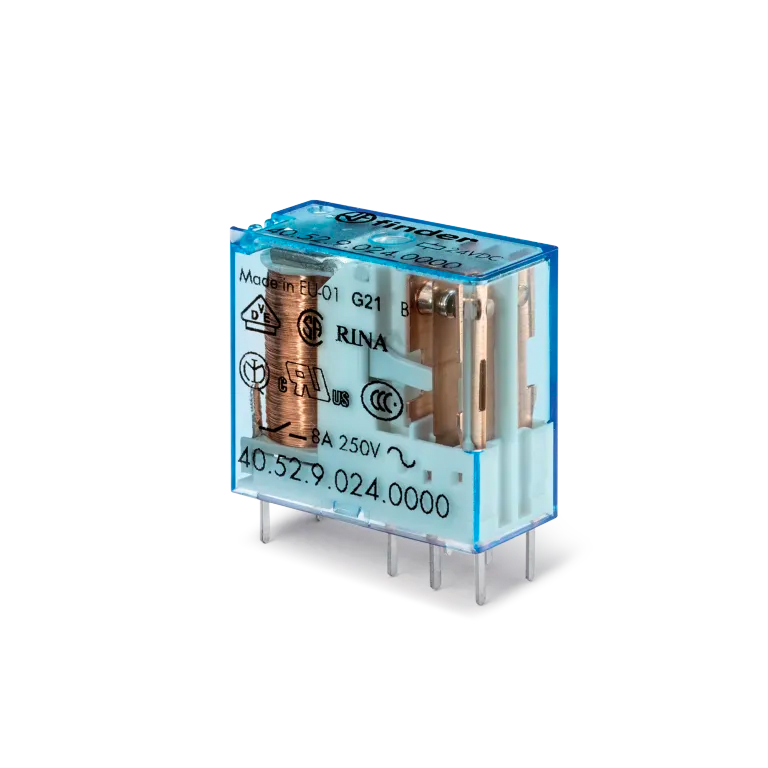

| TYPE 40.52 - MINIATURE PCB/PLUG-IN RELAY 8A |
| Series Description: Type 40.52 miniature relay 1 CO 8 A, 5.0 mm pin pitch for printed circuit boards, and plug-in with the 95 Series sockets. |
- Pin length 3.5 mm for PCB mounting
- Pin length 5.3 mm for plug-in relays
- DC coil (650 mW or 500 mW)
- Variant with cadmium-free contacts
- 8 mm, 6 kV (1.2/50µs) insulation between coil and contacts
- Compliance with glow wire test according to EN 60335-1
- For use with 95 Series sockets with push-in, screw or spring terminals for mounting on 35 mm rail (EN 60715) or PCB
- For use with 99 Series coil indication and EMC suppression modules and Type 86.30 timer modules
- Protection category: • RT II – flux proof (Standard) • RT III – washable (Special version)
|
RoHS Compliant
