Product Description
Description: Power Relay • Mounting Type: Socketable • Coil Voltage: 24VAC/DC • Contact Form: 2C DPDT • Contact Rating (Current): 8A • Coil Type: Non Latching • Termination Style: Plug In • Seal Rating: - • Contact Material: Silver Nickel (AgNi)
| Product Information |
|
Resources |
| Manufacturer |
Finder |
| Product Category |
Relays |
| Product Sub Category |
Power Relay |
| Series |
40 Series |
| Model |
Type 40.52 |
|
|
|
| Product Attribute |
Attribute Value |
| Mounting Type |
Socketable |
| Coil Voltage |
24VAC/DC |
| Contact Form |
2C DPDT |
| Contact Rating (Current) |
8A |
| Switching Voltage |
400VAC - Max |
| Load - Max Switching |
3200VA |
| Coil Current |
- |
| Coil Type |
Non Latching |
| Termination Style |
Plug In |
| Seal Rating |
- |
| Must Operate Voltage |
- |
| Must Release Voltage |
- |
| Operate Time |
- |
| Release Time |
- |
| Operating Temperature |
-40°C ~ 85°C |
| Contact Material |
Silver Nickel (AgNi) |
| Approval Agency |
CCC, CSA, cURus, EAC, ENEC, RINA, VDE |

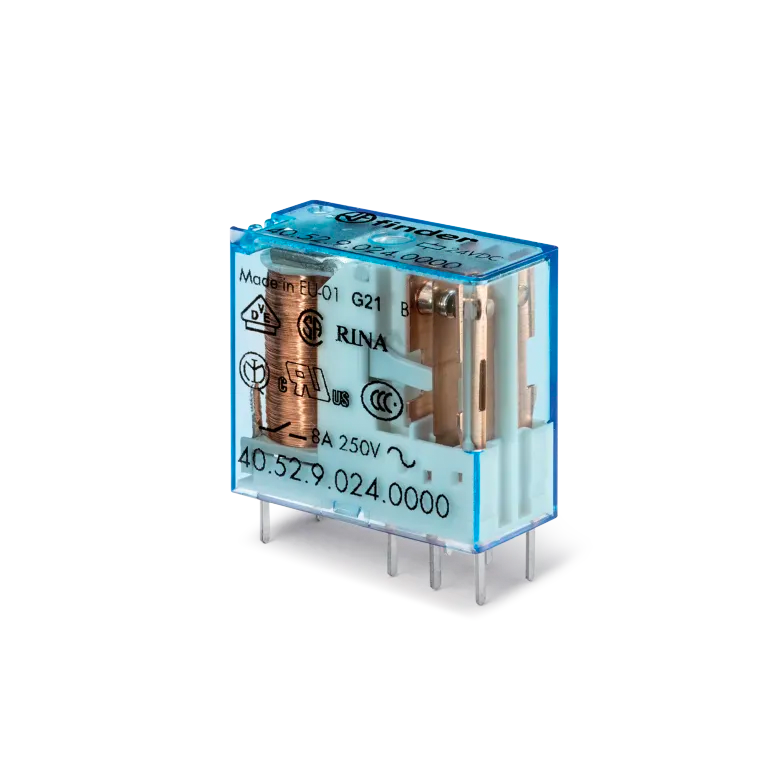

| TYPE 40.52 - MINIATURE PCB/PLUG-IN RELAY 8A |
| Series Description: Type 40.52 miniature relay 1 CO 8 A, 5.0 mm pin pitch for printed circuit boards, and plug-in with the 95 Series sockets. |
- Pin length 3.5 mm for PCB mounting
- Pin length 5.3 mm for plug-in relays
- DC coil (650 mW or 500 mW)
- Variant with cadmium-free contacts
- 8 mm, 6 kV (1.2/50µs) insulation between coil and contacts
- Compliance with glow wire test according to EN 60335-1
- For use with 95 Series sockets with push-in, screw or spring terminals for mounting on 35 mm rail (EN 60715) or PCB
- For use with 99 Series coil indication and EMC suppression modules and Type 86.30 timer modules
- Protection category: • RT II – flux proof (Standard) • RT III – washable (Special version)
|
RoHS Compliant
