Product Description
Description: Power Relay • Mounting Type: Socketable • Coil Voltage: 110VAC • Contact Configuration: 1C SPDT • Contact Rating (Current): 10A • Coil Type: Non Latching • Termination Style: Plug In • Seal Rating: Sealed - Flux Protection • Contact Material: Silver Nickel (AgNi)
| Product Information | Resources |
|
|
RoHS Compliant| Specifications |
| Product Attribute | Attribute Value |
| Mounting Type | Socketable |
| Coil Voltage | 110VAC |
| Contact Configuration | 1C SPDT |
| Contact Rating (Current) | 10A |
| Switching Voltage | 400VAC - Max |
| Load - Max Switching | 4000VA |
| Coil Current | 9.4 mA |
| Coil Type | Non Latching |
| Termination Style | Plug In |
| Seal Rating | Sealed - Flux Protection |
| Must Operate Voltage | 88 VAC |
| Must Release Voltage | 22 VAC |
| Operate Time | 7 ms |
| Release Time | 3 ms |
| Operating Temperature | -40°C ~ 85°C |
| Contact Material | Silver Nickel (AgNi) |
| Approval Agency | CCC, CSA, cURus, EAC, ENEC, RINA, VDE |
| Series Features |

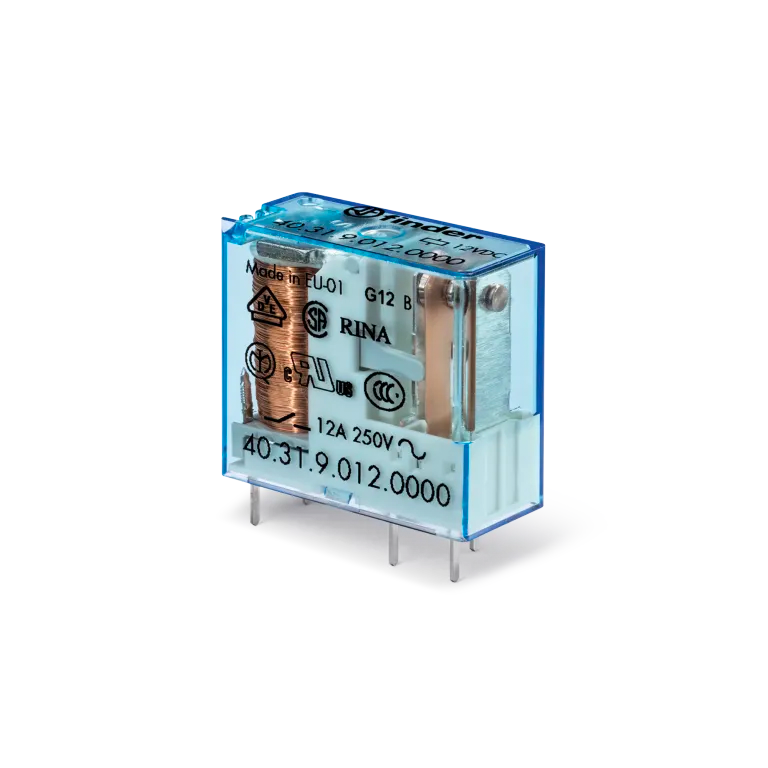

| TYPE 40.31 - MINIATURE PCB/PLUG-IN RELAYS |
| Series Description: Type 40.31 is a miniature relays 1 CO 10 A, 3.5 mm pin pitch for printed circuit boards, and plug-in with 95 Series sockets. |
|
