Product Description

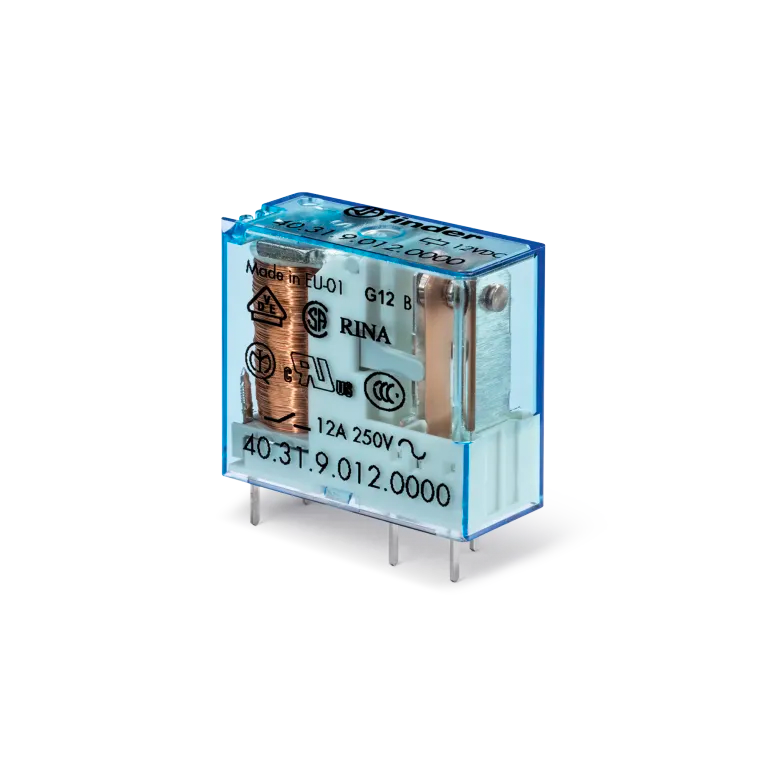

Description: Power Relay • Mounting Type: Through Hole • Coil Voltage: 12VDC • Contact Configuration: 1C SPDT • Contact Rating (Current): 12 A • Switching Voltage: 400VAC - Max • Coil Current: 42 mA • Coil Type: Non Latching • Termination Style: PC Pin
| Product Information | Resources |
|
|
RoHS Compliant| Specifications |
| Product Attribute | Attribute Value |
| Mounting Type | Through Hole |
| Coil Voltage | 12VDC |
| Contact Configuration | 1C SPDT |
| Contact Rating (Current) | 12 A |
| Switching Voltage | 400VAC - Max |
| Coil Current | 42 mA |
| Coil Type | Non Latching |
| Termination Style | PC Pin |
| Seal Rating | - |
| Must Operate Voltage | 8.8 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 10 ms |
| Release Time | 3 ms |
| Operating Temperature | -40°C ~ 85°C |
| Contact Material | Silver Nickel (AgNi) |
| Relay Type | General Purpose |
| Series Features |
| TYPE 40.31 - MINIATURE PCB/PLUG-IN RELAYS |
| Series Description: Type 40.31 is a miniature relays 1 CO 10 A, 3.5 mm pin pitch for printed circuit boards, and plug-in with 95 Series sockets. |
|
