Product Description
Description: Power Relay • Mounting Type: DIN Rail • Coil Voltage: 230VAC • Contact Configuration: 1C SPDT • Contact Rating (Current): 6 A • Switching Voltage: 400VAC - Max • Coil Current: 5.9 mA • Coil Type: Non Latching • Termination Style: Spring Terminal
| Product Information | | Resources |
| Manufacturer | Finder | | Product Category | Relay | | Product Sub Category | Power Relay | | Series | 39 Series | | Model | Type 39.61 |
| | |
Product Attribute
| Attribute Value
|
| Mounting Type | DIN Rail |
| Coil Voltage | 230VAC |
| Contact Configuration | 1C SPDT |
| Contact Rating (Current) | 6 A |
| Switching Voltage | 400VAC - Max |
| Load - Max Switching | 2400VA |
| Coil Current | 5.9 mA |
| Coil Type | Non Latching |
| Termination Style | Spring Terminal |
| Must Operate Voltage | 184 VAC |
| Must Release Voltage | 72 VAC |
| Operate Time | 5 ms |
| Release Time | 6 ms |
| Operating Temperature | -40°C ~ 70°C |
| Contact Material | Silver Nickel (AgNi) |
| Approval Agency | CE, CSA, cURus, EAC, RINA, VDE |
| Relay Type | General Purpose |

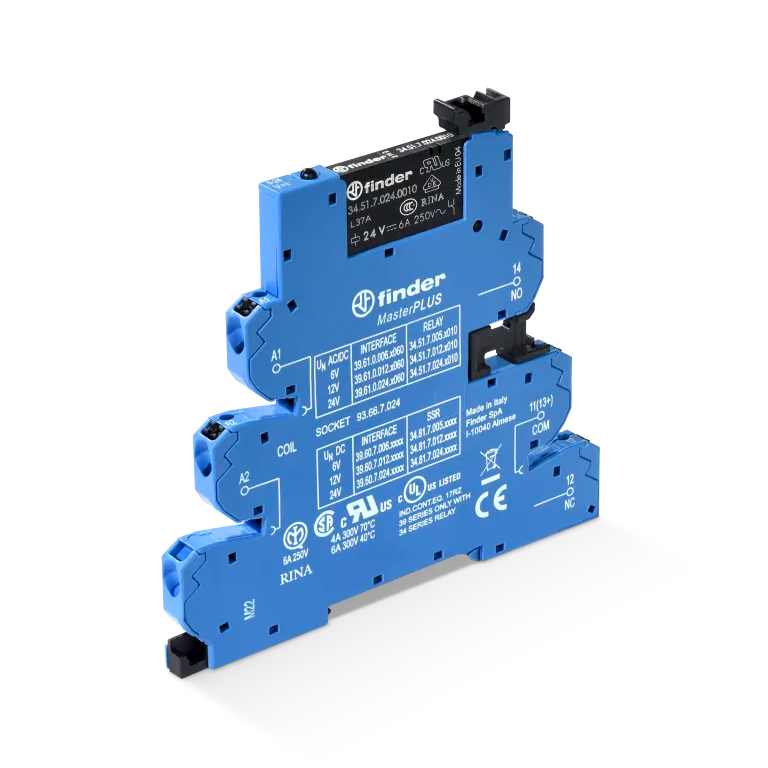

| TYPE 39.61 - MASTERPLUS - EMR RELAY INTERFACE MODULE |
| Series Description: The Type 39.61 MasterPLUS Electromechanical relay interface module offers added protection for the output circuit thanks to the replaceable fuse module. This product is for general interface use in any type of system and application. It can be used for in |
- Sensitive DC, AC or AC/DC coil versions
- 1 CO 6 A contact
- Common connection possible with optional jumper links (terminals A1, A2 and 11)
- UL Listing (certain relay/socket combinations)
- 6.2 mm wide • Push-In terminals
- 35 mm rail (EN 60715) mounting
- Also available as the Type 39.61.3 with: Special coil leakage current suppression circuit; Coil options; 125 V AC/DC and 230 V AC; 1 CO – 6 A/250 V AC
|
RoHS Compliant
