Product Description
Description: Power Relay • Mounting Type: DIN Rail • Coil Voltage: 240VAC/DC • Contact Configuration: 1C SPDT • Contact Rating (Current): 6 A • Switching Voltage: 400VAC - Max • Coil Current: 19 mA • Coil Type: Non Latching • Termination Style: Spring Terminal
| Product Information | Resources |
|
|
RoHS Compliant| Specifications |
| Product Attribute | Attribute Value |
| Mounting Type | DIN Rail |
| Coil Voltage | 240VAC/DC |
| Contact Configuration | 1C SPDT |
| Contact Rating (Current) | 6 A |
| Switching Voltage | 400VAC - Max |
| Coil Current | 19 mA |
| Coil Type | Non Latching |
| Termination Style | Spring Terminal |
| Must Operate Voltage | 20.4 VAC/DC |
| Must Release Voltage | 2.4 VAC/DC |
| Operate Time | 5 ms |
| Release Time | 6 ms |
| Operating Temperature | -40°C ~ 70°C |
| Contact Material | Silver Nickel (AgNi), Gold (Au) |
| Relay Type | General Purpose |
| Series Features |

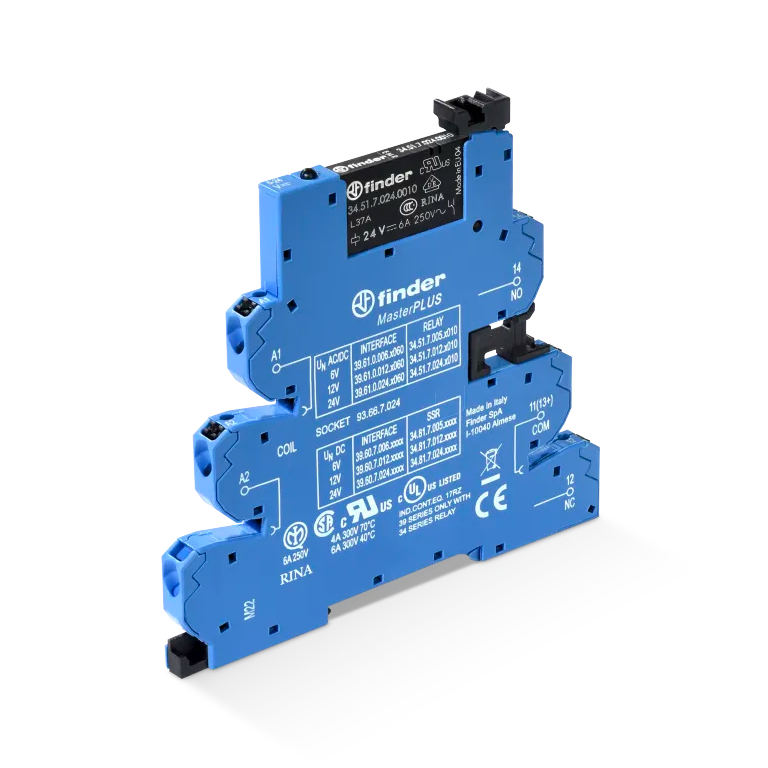

| TYPE 39.61 - MASTERPLUS - EMR RELAY INTERFACE MODULE |
| Series Description: The Type 39.61 MasterPLUS Electromechanical relay interface module offers added protection for the output circuit thanks to the replaceable fuse module. This product is for general interface use in any type of system and application. It can be used for in |
|
