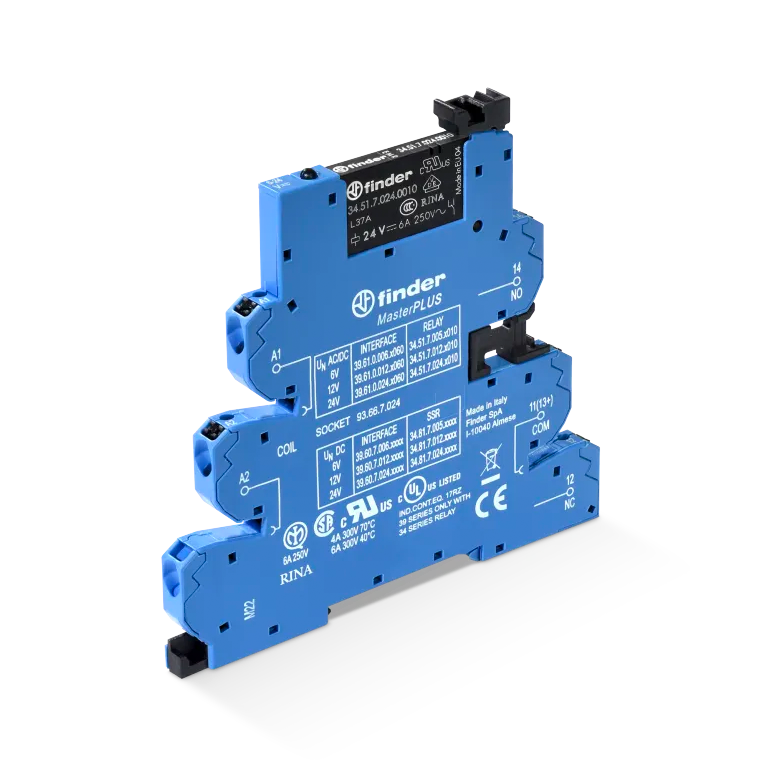

  • Finder - 39.61.0.125.0060 - Power Relay

    • To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.

    39.61.0.125.0060

    Manufacturer Finder
    Manufacturer Product Number 39.61.0.125.0060

    This item is out of stock. Please submit an RFQ or call 800-526-5376 for pricing and delivery.

    Product Description

    Description: Power Relay • Mounting Type: DIN Rail • Coil Voltage: 125VAC/DC • Contact Configuration: 1C SPDT • Contact Rating (Current): 6 A • Switching Voltage: 400VAC - Max • Coil Current: 5.6 mA • Coil Type: Non Latching • Termination Style: Spring Terminal

          Product Information       Resources
    ManufacturerFinder
    Product Category Relay
    Product Sub Category Power Relay
    Series39 Series
    ModelType 39.61

      Download Datasheet

      RoHS Compliant
          Specifications
    Product Attribute
    		Attribute Value
    Mounting TypeDIN Rail
    Coil Voltage125VAC/DC
    Contact Configuration1C SPDT
    Contact Rating (Current)6 A
    Switching Voltage400VAC - Max
    Load - Max Switching2400VA
    Coil Current5.6 mA
    Coil TypeNon Latching
    Termination StyleSpring Terminal
    Must Operate Voltage88 VAC/DC
    Must Release Voltage12.5 VAC/DC
    Operate Time5 ms
    Release Time6 ms
    Operating Temperature-40°C ~ 70°C
    Contact MaterialSilver Nickel (AgNi)
    Approval AgencyCE, CSA, cURus, EAC, RINA, VDE
    Relay TypeGeneral Purpose
          Series Features
    TYPE 39.61 - MASTERPLUS - EMR RELAY INTERFACE MODULE
    Series Description: The Type 39.61 MasterPLUS Electromechanical relay interface module offers added protection for the output circuit thanks to the replaceable fuse module. This product is for general interface use in any type of system and application. It can be used for in
    • Sensitive DC, AC or AC/DC coil versions
    • 1 CO 6 A contact
    • Common connection possible with optional jumper links (terminals A1, A2 and 11)
    • UL Listing (certain relay/socket combinations)
    • 6.2 mm wide • Push-In terminals
    • 35 mm rail (EN 60715) mounting
    • Also available as the Type 39.61.3 with: Special coil leakage current suppression circuit; Coil options; 125 V AC/DC and 230 V AC; 1 CO – 6 A/250 V AC
