To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Finder |
| Manufacturer Product Number | 39.61.0.006.0060 |
| Description | Power Relay; 1C SPDT; 6 A; 6VAC/DC; Non Latching; DIN Rail; Spring Terminal |
| Datasheet | Download Datasheet |

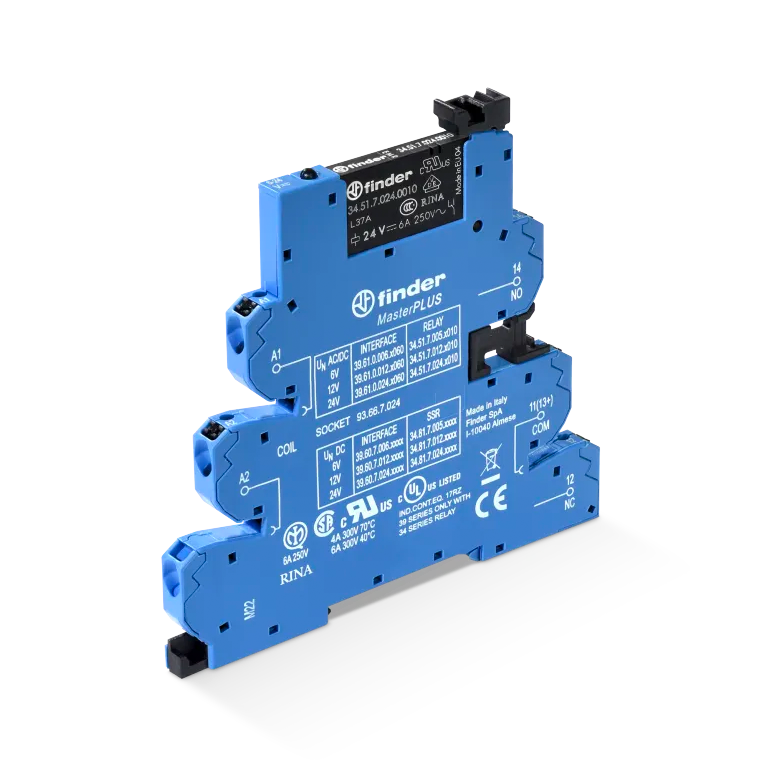

The Finder 39.61.0.006.0060 is a power relay with 1C SPDT contacts, rated 6 A and switching up to 400VAC, driven by a 6VAC/DC coil and drawing 35 mA.
It has DIN Rail mounting and spring terminals and contacts in AgNi.
| Category | |
| Manufacturer | Finder |
| Model | 39.61 |
| Mounting Type | DIN Rail |
| Coil Voltage | 6VAC/DC |
| Contact Configuration | 1C SPDT |
| Contact Rating (A) | 6 |
| Switching Voltage | 400VAC - Max |
| Contact Material | AgNi |
| Coil Current (mA) | 35 |
| Coil Type | Non Latching |
| Termination Style | Spring Terminal |
| Must Drop-Out Voltage | 0.6 V |
| Operate Time (ms) | 5 |
| Release Time (ms) | 6 |
| Operating Temperature (°C) | -40…+70 |
| Rated Load AC1 (VA) | 1500 |
| Mechanical Life (cycles) | 10,000,000 cycles |
| Electrical Life (cycles) | 60,000 cycles |
| Color | Blue |
