Product Description
Description: Power Relay • Mounting Type: DIN Rail • Coil Voltage: 125VAC • Contact Configuration: 1C SPDT • Contact Rating (Current): 6 A • Switching Voltage: 400VAC - Max • Coil Current: 8.4 mA • Coil Type: Non Latching • Termination Style: Screw Terminal
| Product Information | | Resources |
| Manufacturer | Finder | | Product Category | Relay | | Product Sub Category | Power Relay | | Series | 39 Series | | Model | Type 39.31 |
| | |
Product Attribute
| Attribute Value
|
| Mounting Type | DIN Rail |
| Coil Voltage | 125VAC |
| Contact Configuration | 1C SPDT |
| Contact Rating (Current) | 6 A |
| Switching Voltage | 400VAC - Max |
| Load - Max Switching | 2400VA |
| Coil Current | 8.4 mA |
| Coil Type | Non Latching |
| Termination Style | Screw Terminal |
| Must Operate Voltage | 88 VAC |
| Must Release Voltage | 44 VAC |
| Operate Time | 5 ms |
| Release Time | 6 ms |
| Operating Temperature | -40°C ~ 70°C |
| Contact Material | Silver Nickel (AgNi) |
| Approval Agency | CE, CSA, cURus, EAC, RINA, VDE |
| Relay Type | General Purpose |

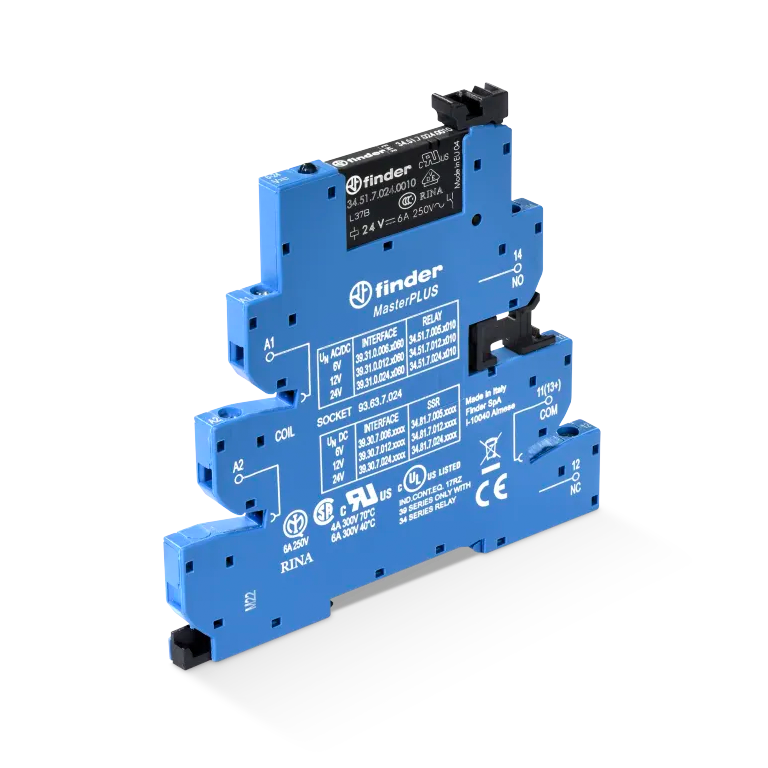

| TYPE 39.31 - MASTERINTERFACE – MASTERPLUS EMR RELAY INTERFACE MODULE 6A |
| Series Description: Type 39.31 MasterPLUS EMR relay interface module with EMR relay, 1 CO – 6 A. Accepts fuse holder module allowing for protection of the output circuit – saving space. Width 6.2mm. |
- Coils from 6 to 125 V AC/DC, 125 and 220 V DC, 230 V AC and 24Â… 240 V AC/DC
- Special residual current suppression circuit, 125 V AC/DC and 230 V A
- Screw terminals and Push-in terminals
|
RoHS Compliant
