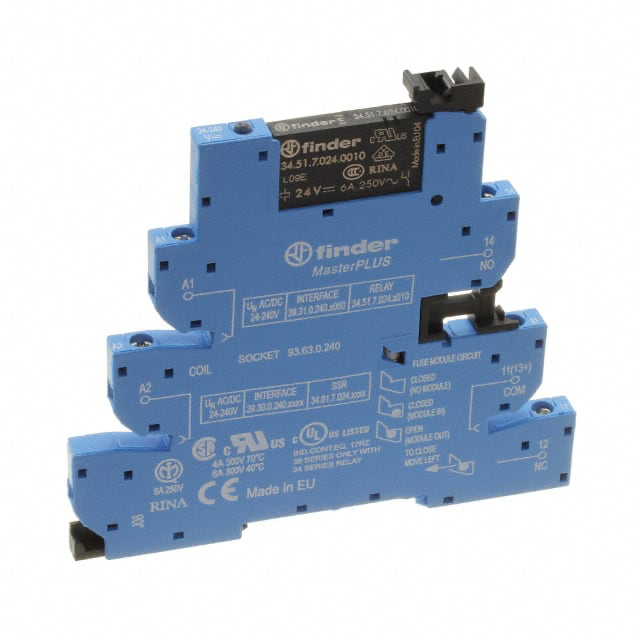

39.31.0.240.0060
Manufacturer
Finder
Manufacturer Product Number
39.31.0.240.0060
Product Description
Description: Power Relay • Mounting Type: DIN Rail • Coil Voltage: 240VAC/DC • Contact Configuration: 1C SPDT • Contact Rating (Current): 6 A • Switching Voltage: 400VAC - Max • Coil Current: 19 mA • Coil Type: Non Latching • Termination Style: Screw Terminal
Product Information Resources
Manufacturer Finder Product Category Relay Product Sub Category Power Relay Series 39 Series Model Type 39.31
Product Attribute Attribute Value Mounting Type DIN Rail Coil Voltage 240VAC/DC Contact Configuration 1C SPDT Contact Rating (Current) 6 A Switching Voltage 400VAC - Max Load - Max Switching 2400VA Coil Current 19 mA Coil Type Non Latching Termination Style Screw Terminal Must Operate Voltage 20.4 VAC/DC Must Release Voltage 2.4 VAC/DC Operate Time 5 ms Release Time 6 ms Operating Temperature -40°C ~ 70°C Contact Material Silver Nickel (AgNi) Approval Agency CE, CSA, cURus, EAC, RINA, VDE Relay Type General Purpose
TYPE 39.31 - MASTERINTERFACE – MASTERPLUS EMR RELAY INTERFACE MODULE 6A Series Description: Type 39.31 MasterPLUS EMR relay interface module with EMR relay, 1 CO – 6 A. Accepts fuse holder module allowing for protection of the output circuit – saving space. Width 6.2mm.
Coils from 6 to 125 V AC/DC, 125 and 220 V DC, 230 V AC and 24Â… 240 V AC/DC
Special residual current suppression circuit, 125 V AC/DC and 230 V A
Screw terminals and Push-in terminals
Product Videos
Custom Field
RoHS Compliant
