Product Description
Description: Power Relay • Mounting Type: DIN Rail • Coil Voltage: 240VAC • Contact Form: 1C SPDT • Contact Rating (Current): 6A • Switching Voltage: 400VAC - Max • Coil Current: 3 mA • Coil Type: Non Latching • Features: Socket Included • Termination Style: Spring Terminal
| Product Information | Resources |
|
|
RoHS Compliant| Specifications |
| Product Attribute | Attribute Value |
| Mounting Type | DIN Rail |
| Coil Voltage | 240VAC |
| Contact Form | 1C SPDT |
| Contact Rating (Current) | 6A |
| Switching Voltage | 400VAC - Max |
| Load - Max Switching | 2400VA |
| Coil Current | 3 mA |
| Coil Type | Non Latching |
| Features | Socket Included |
| Termination Style | Spring Terminal |
| Must Operate Voltage | 192 VAC |
| Must Release Voltage | 24 VAC |
| Operate Time | 5 ms |
| Release Time | 6 ms |
| Operating Temperature | -40°C ~ 55°C |
| Contact Material | Silver Nickel (AgNi) |
| Approval Agency | CE, CSA, cURus, EAC, RINA, UKCA |
| Relay Type | General Purpose |
| Series Features |

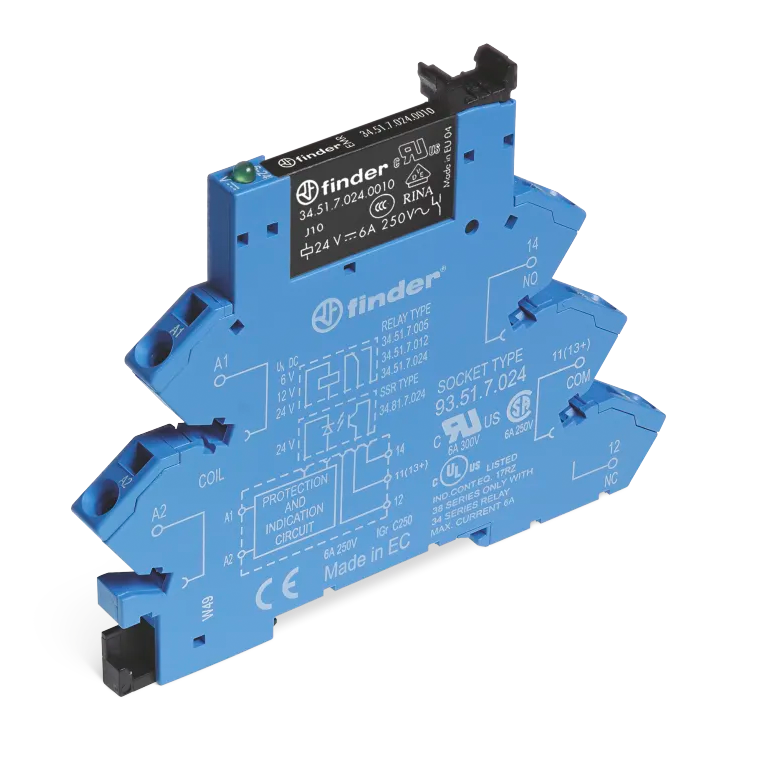

| TYPE 38.61 - RELAY INTERFACE MODULE |
| Series Description: Type 38.61 Electromechanical relay interface module with screwless terminals, 1 CO rated 6 A/250 V AC, 6.2 mm wide, 35 mm rail (EN 60715) mounting, for PLC or other systems. |
|
