Product Description

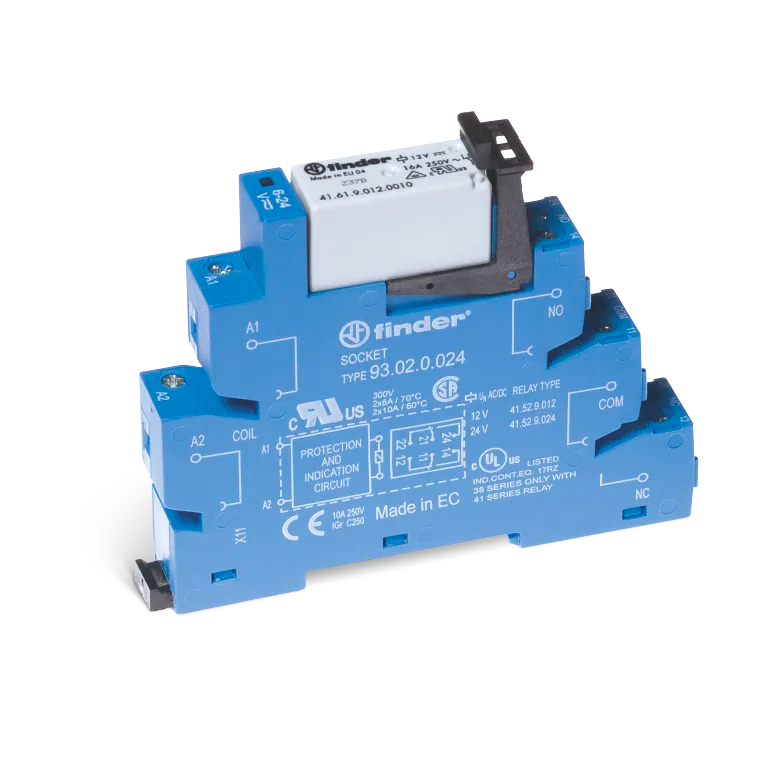

Description: Power Relay • Mounting Type: DIN Rail • Coil Voltage: 12VDC • Contact Configuration: 1C SPDT • Contact Rating (Current): 16 A • Switching Voltage: 400VAC - Max • Coil Current: 41 mA • Coil Type: Non Latching • Features: Socket Included • Termination Style: Screw Terminal
| Product Information | Resources |
|
|
RoHS Compliant| Specifications |
| Product Attribute | Attribute Value |
| Mounting Type | DIN Rail |
| Coil Voltage | 12VDC |
| Contact Configuration | 1C SPDT |
| Contact Rating (Current) | 16 A |
| Switching Voltage | 400VAC - Max |
| Load - Max Switching | 6400VA |
| Coil Current | 41 mA |
| Coil Type | Non Latching |
| Features | Socket Included |
| Termination Style | Screw Terminal |
| Must Operate Voltage | 9.6 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 8 ms |
| Release Time | 10 ms |
| Operating Temperature | -40°C ~ 70°C |
| Contact Material | Silver Nickel (AgNi) |
| Approval Agency | CE, CSA, cURus, EAC, RINA, UKCA |
| Relay Type | General Purpose |
| Series Features |
| TYPE 38.01 - RELAY INTERFACE MODULE |
| Series Description: Type 38.01 Relay Interface Modules with (EMR) electromechanical relay, 1 CO 16 A, width 14 mm. Designed for interfacing with PLC systems |
|
