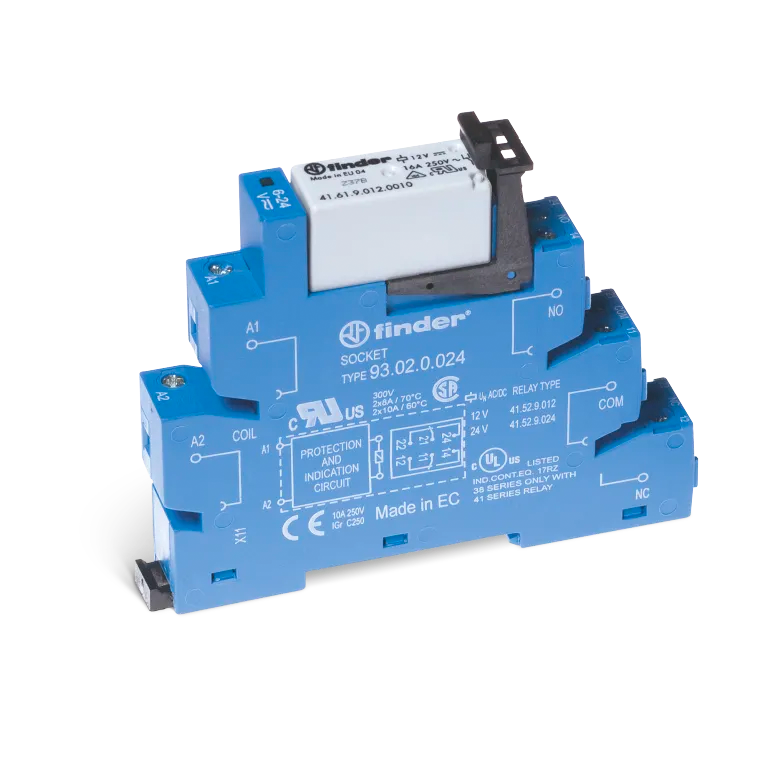

To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
38.01.0.125.0060
Manufacturer
Finder
Manufacturer Product Number
38.01.0.125.0060
Product Description
Description: Power Relay • Mounting Type: DIN Rail • Coil Voltage: 125VAC/DC • Contact Configuration: 1C SPDT • Contact Rating (Current): 16 A • Switching Voltage: 400VAC - Max • Coil Current: 4.6 mA • Coil Type: Non Latching • Features: Socket Included • Termination Style: Screw Terminal
Product Information Resources
Manufacturer Finder Product Category Relay Product Sub Category Power Relay Series 38 Series Model Type 38.01
Product Attribute Attribute Value Mounting Type DIN Rail Coil Voltage 125VAC/DC Contact Configuration 1C SPDT Contact Rating (Current) 16 A Switching Voltage 400VAC - Max Load - Max Switching 6400VA Coil Current 4.6 mA Coil Type Non Latching Features Socket Included Termination Style Screw Terminal Must Operate Voltage 88 VAC/DC Must Release Voltage 12.5 VAC/DC Operate Time 8 ms Release Time 10 ms Operating Temperature -40°C ~ 55°C Contact Material Silver Nickel (AgNi) Approval Agency CE, CSA, cURus, EAC, RINA, UKCA Relay Type General Purpose
TYPE 38.01 - RELAY INTERFACE MODULE Series Description: Type 38.01 Relay Interface Modules with (EMR) electromechanical relay, 1 CO 16 A, width 14 mm. Designed for interfacing with PLC systems
Sensitive DC or AC/DC coils
Integral coil indication and protection circuit
Removal of the relay via the plastic retaining and release clip
UL Listing (relay/socket/jumper link)
35 mm rail (EN 60715) mounting
Product Videos
Custom Field
RoHS Compliant
