Product Description
Description: Power Relay • Mounting Type: Through Hole • Coil Voltage: 60VDC • Contact Configuration: 1C SPDT • Contact Rating (Current): 6 A • Switching Voltage: 400VAC - Max • Coil Current: 3 mA • Coil Type: Non Latching • Termination Style: PC Pin • Seal Rating: Sealed - Flux Protection
| Product Information | | Resources |
| Manufacturer | Finder | | Product Category | Relay | | Product Sub Category | Power Relay | | Series | 34 Series | | Model | Type 34.51 |
| | |
Product Attribute
| Attribute Value
|
| Mounting Type | Through Hole |
| Coil Voltage | 60VDC |
| Contact Configuration | 1C SPDT |
| Contact Rating (Current) | 6 A |
| Switching Voltage | 400VAC - Max |
| Coil Current | 3 mA |
| Coil Type | Non Latching |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Flux Protection |
| Must Operate Voltage | 42 VDC |
| Operate Time | 5 ms |
| Release Time | 3 ms |
| Operating Temperature | -40°C ~ 85°C |
| Contact Material | Silver Nickel (AgNi), Gold (Au) |
| Relay Type | General Purpose |
| Approval Agency | CCC, cURus, RINA, VDE |

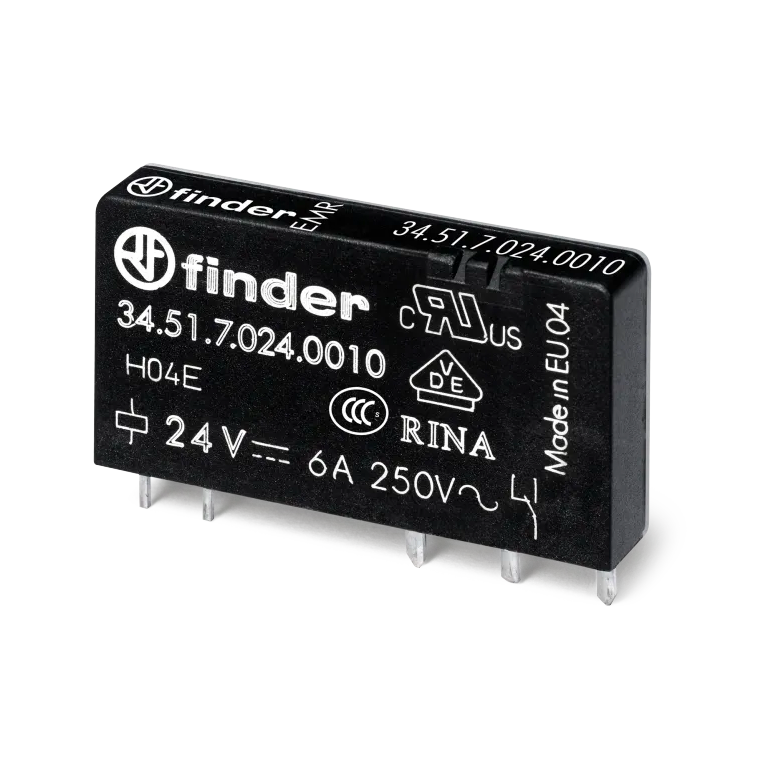

| TYPE 34.51 - ULTRA-SLIM ELECTROMECHANICAL PCB RELAYS 6A |
Series Description: Type 34.51 ultra-slim electromechanical PCB relays, 6 A, 5 mm width, low absorption coil and suitable for PCB mounting or socket mounting using the 93 Series sockets.
Available version 34.51-5010 with contact AgNi+AU. |
- 1 changeover contact or 1 normally open contact
- Ultra-slim, 5mm wide
- Sensitive DC coil – 170 mW (possibility of AC/DC power supply with 93 Series sockets)
- UL Listing (relay/socket/jumper link)
- Cadmium-free contacts
- 8/8 mm clearance/sliding distance
- 6 kV (1.2/50 ?s) insulation between coil and contacts
|
RoHS Compliant
