Product Description
Description: Power Relay • Mounting Type: Through Hole • Coil Voltage: 5VDC • Contact Configuration: 1A SPST-NO • Contact Rating (Current): 6 A • Switching Voltage: 400VAC - Max • Coil Current: 40 mA • Coil Type: Non Latching • Termination Style: PC Pin
| Product Information | | Resources |
| Manufacturer | Finder | | Product Category | Relays | | Product Sub Category | Power Relay | | Series | 32 Series | | Model | Type 32.21 |
| | |
Product Attribute
| Attribute Value
|
| Mounting Type | Through Hole |
| Coil Voltage | 5VDC |
| Contact Configuration | 1A SPST-NO |
| Contact Rating (Current) | 6 A |
| Switching Voltage | 400VAC - Max |
| Coil Current | 40 mA |
| Coil Type | Non Latching |
| Termination Style | PC Pin |
| Must Operate Voltage | 3.9 VDC |
| Operate Time | 6 ms |
| Release Time | 2 ms |
| Operating Temperature | -40°C ~ 85°C |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Relay Type | General Purpose |

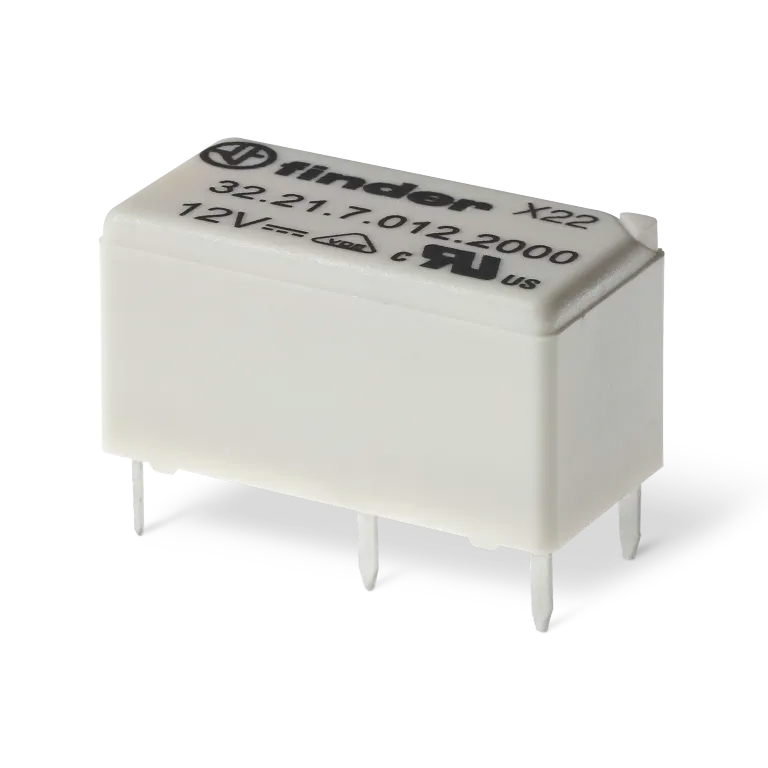

| TYPE 32.21 - SUBMINIATURE PCB RELAYS 6A |
| Series Description: Type 32.21 subminiature PCB relays, 1 CO or 1NO 6A with sensitive DC coil |
- Low profile
- Sensitive DC coil – 200 mW
- Wash tight: RT III
- Cadmium-free contacts
|
RoHS Compliant
