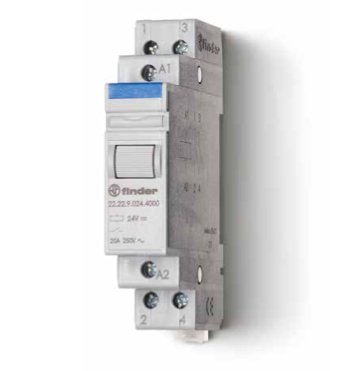

  • Finder - 22.22.8.230.4000 - Power Relay

    • To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.

    22.22.8.230.4000

    Manufacturer Finder
    Manufacturer Product Number 22.22.8.230.4000

    This item is out of stock. Please submit an RFQ or call 800-526-5376 for pricing and delivery.

    Pricing (USD)

    Qty.Unit Price
    1+
    $37.82

    Product Description

    Description: Power Relay • Mounting Type: DIN Rail • Coil Voltage: 230VAC • Contact Configuration: 2A DPST-NO • Contact Rating (Current): 20 A • Switching Voltage: 400VAC - Max • Coil Current: 12.5 mA • Coil Type: Non Latching • Features: Test Button • Termination Style: Screw Terminal

          Product Information       Resources
    ManufacturerFinder
    Product Category Relays
    Product Sub Category Power Relay
    Series22 Series
    ModelType 22.22

      Download Datasheet

      RoHS Compliant
          Specifications
    Product Attribute
    		Attribute Value
    Mounting TypeDIN Rail
    Coil Voltage230VAC
    Contact Configuration2A DPST-NO
    Contact Rating (Current)20 A
    Switching Voltage400VAC - Max
    Coil Current12.5 mA
    Coil TypeNon Latching
    FeaturesTest Button
    Termination StyleScrew Terminal
    Must Operate Voltage196 VAC
    Operate Time15 ms
    Release Time8 ms
    Operating Temperature-40°C ~ 40°C
    Contact MaterialSilver Tin Oxide (AgSnO)
    Relay TypeGeneral Purpose
          Series Features
    22 SERIES - Modular monostable relays 20 A
    Series Description: 1 or 2 pole, 20 A relay for direct 35 mm rail (EN 60715) mounting
    • 17.4 mm wide
    • Test button
    • Identification label
    • AC coils and DC coils
    • 35 mm rail (EN 60715) mount
    • Cadmium free contact material
