Product Description
Description: Distribution Terminal Block • Number of Poles: 1 • Number of Connections: 12 • Line Side Connections Per Pole: 1 • Load Side Connections Per Pole: 11 • Current Rating (Amps): 250 A
| Product Information | | Resources |
| Manufacturer | Finder | | Product Category | Terminal Block | | Product Sub Category | Distribution Terminal Block | | Series | 9D Series | | Model | Type 9D.01 |
| | |
Product Attribute
| Attribute Value
|
| Number of Poles | 1 |
| Number of Connections | 12 |
| Line Side Connections Per Pole | 1 |
| Load Side Connections Per Pole | 11 |
| Line Side Connection Type | Screw Connection |
| Load Side Connection Type | Screw Connection |
| Line Side Wire/Stud Size | 250MCM (kcmil) - 2 AWG |
| Load Side Wire/Stud Size | 2-14 AWG |
| Current Rating (Amps) | 250 A |
| Voltage - Rated | 1.5 V |

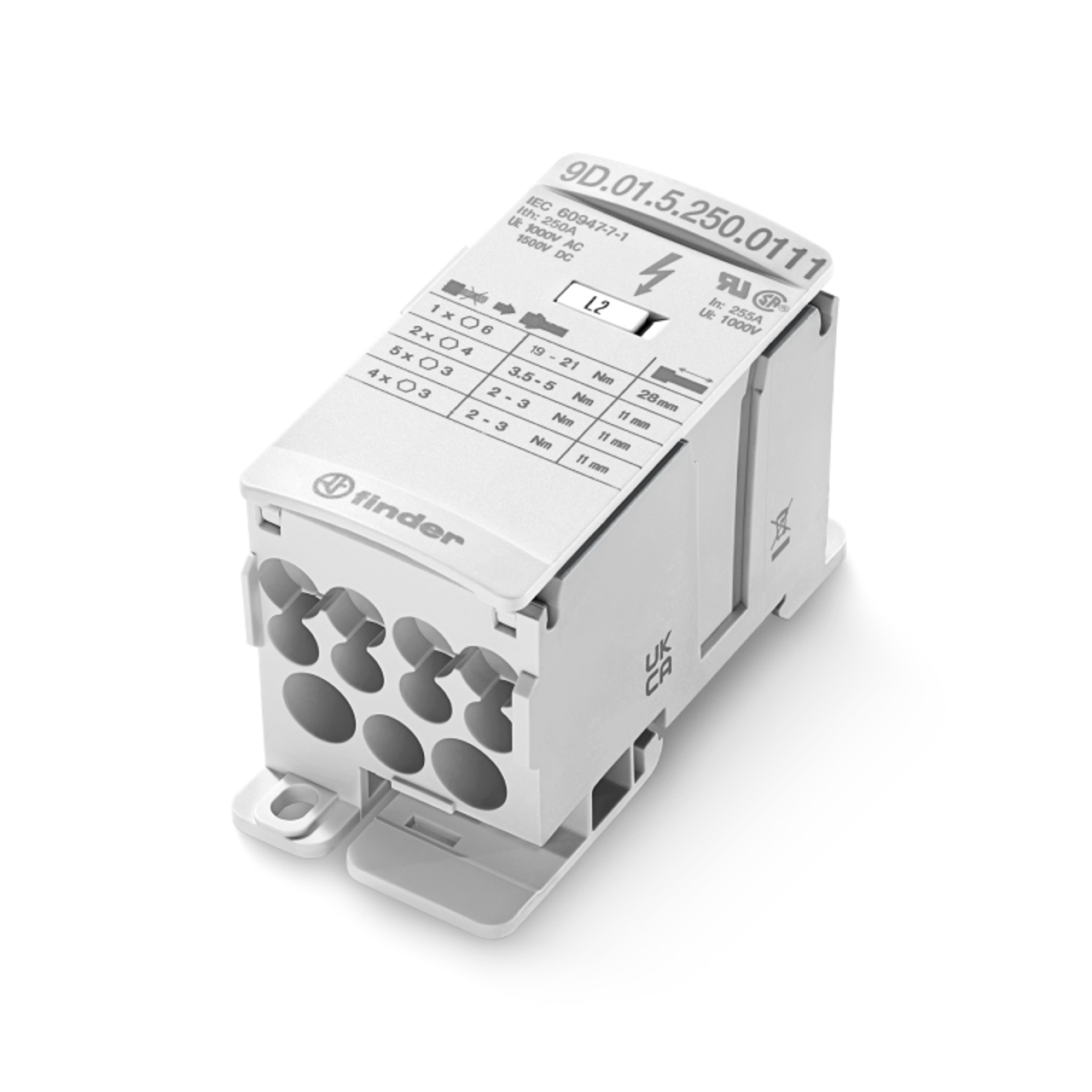

| TYPE 9D.01 - HIGH CURRENT TERMINAL BLOCKS |
| Series Description: High current Terminal blocks for the combining and distribution of high current power cables within electrical panels and cabinets. |
- Nominal current: 80, 125, 175, 250 or 400 A
- Available with 7, 8 or 12 connections (according to type)
- Single pole or combine for multi-pole applications
- Cable connection capacity up to 185 mm2 cross section
- Screw terminal
- 35 mm rail (EN 60715) mount
|
RoHS Compliant
