To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Finder |
| Manufacturer Product Number | 8A.58.9.024.1600 |
| Description | PLC Expansion Module; Digital I/O, relay outputs; 6 A (10 A peak); (12...24)V DC |
| Datasheet | Download Datasheet |

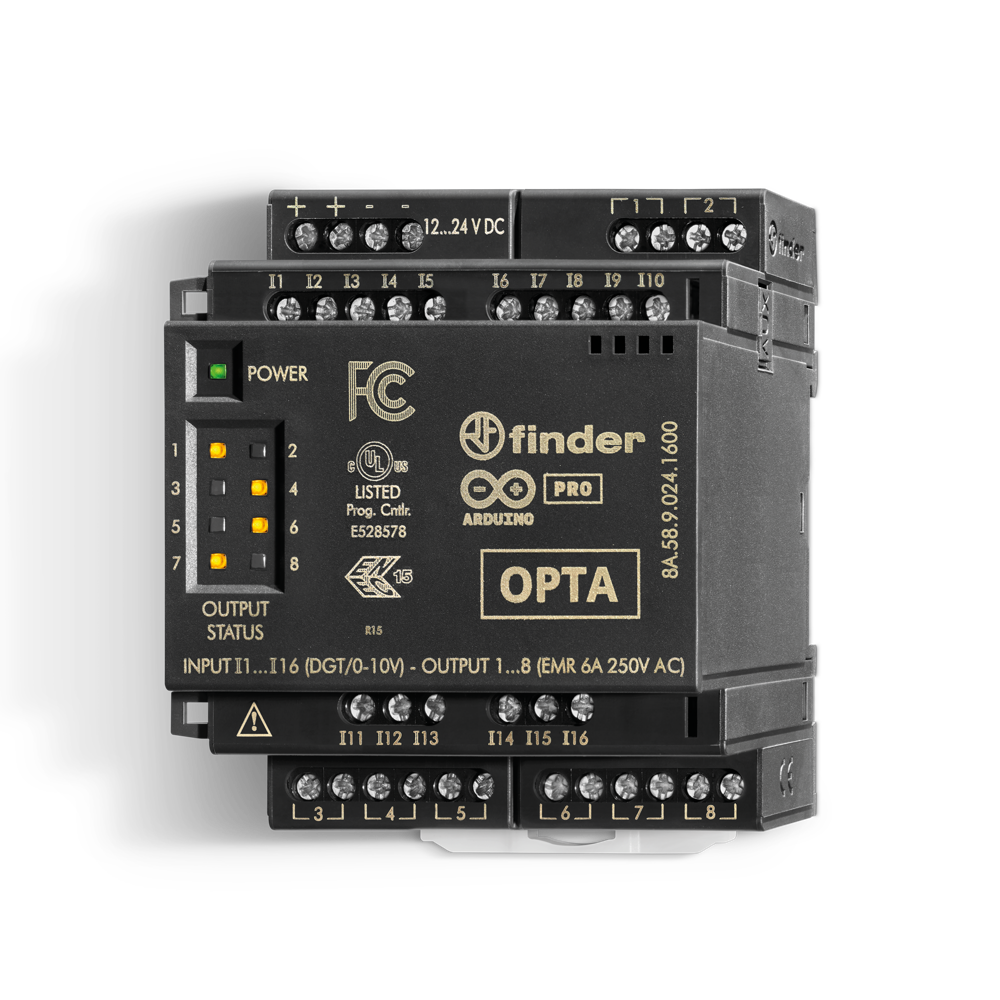

The Finder 8A.58.9.024.1600 is a PLC expansion module adding digital I/O, relay outputs: 16 inputs and 8 outputs, on a 12 to 24 V DC supply.
It works with the Finder Opta 8A.04.9.024.8300, 8310 and 8320.
It is programmed in Arduino IDE or Arduino PLC IDE, through the Opta.
Its inputs are digital or analog 0...10 V, configurable; PNP/NPN; its outputs are relay, 8 NO (SPST), AgNi, rated 6 A (10 A peak).
It is 70 mm wide and mounts on DIN rail.
| Category | |
| Manufacturer | Finder |
| Model | 8A.58 |
| Module Type | Digital I/O, relay outputs |
| Compatible With | Finder Opta 8A.04.9.024.8300, 8310 and 8320 |
| Programming Language | Arduino IDE or Arduino PLC IDE, through the Opta |
| Number of Inputs | 16 |
| Input Type | Digital or analog 0...10 V, configurable; PNP/NPN |
| Number of Outputs | 8 |
| Output Type | Relay, 8 NO (SPST), AgNi |
| Output Rating | 6 A (10 A peak) |
| Switching Voltage | 400VAC - Max |
| Input Voltage | (12...24)V DC |
| Input Operating Range | 10.6...27.5 V |
| Rated Power | 1 W |
| Module Width (mm) | 70 |
| Mounting Type | DIN Rail |
| Termination Style | Screw Terminal |
| Wire Size | 20-14 AWG |
| Operating Temperature (°C) | -20...+50 |
| Protection Category | IP 20 |
| Approvals | CE, cULus, ENEC, UKCA |
