To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Finder |
| Manufacturer Product Number | 8A.26.9.024.060C |
| Description | PLC Expansion Module; Analog I/O; (12...24)V DC; 6; DIN Rail; Screw Terminal |
| Datasheet | Download Datasheet |

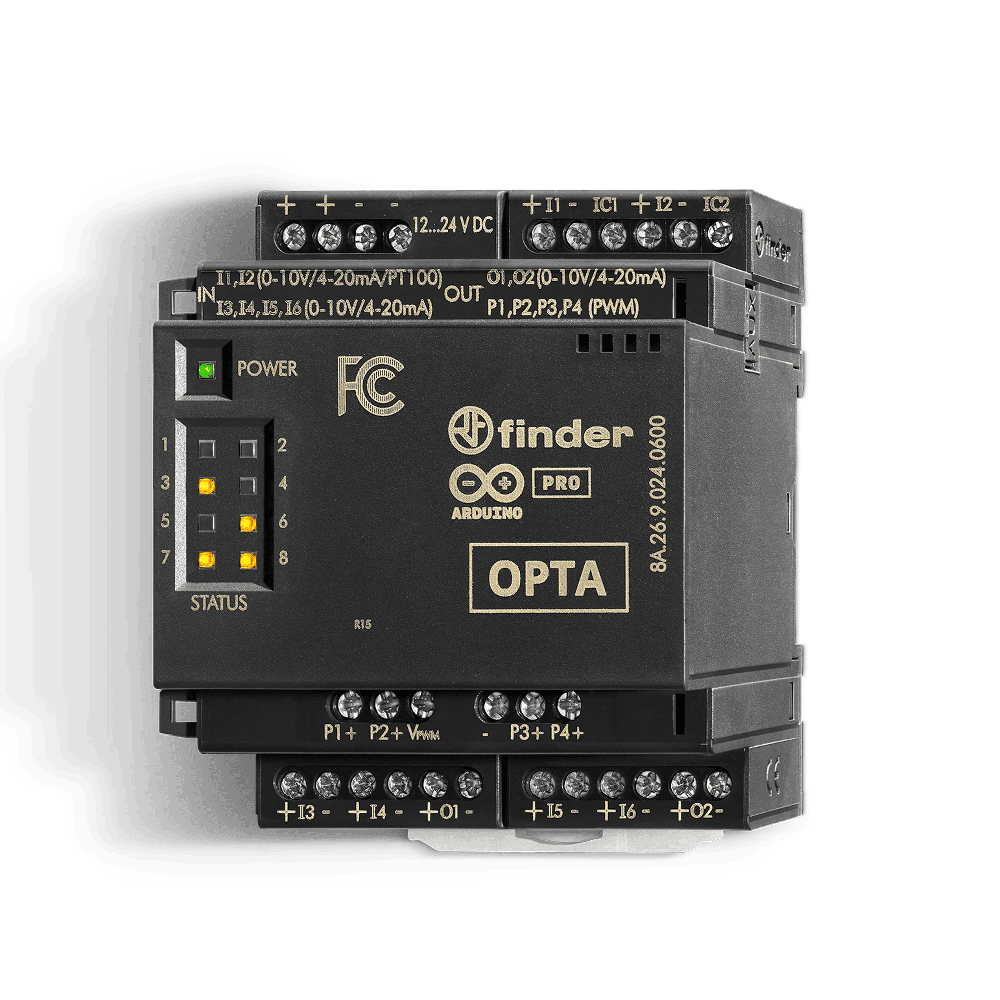

The Finder 8A.26.9.024.060C is a PLC expansion module adding analog I/O: 6 inputs and 2 outputs, on a 12 to 24 V DC supply.
It works with the Finder Opta Codesys 8A.04.9.024.832C.
It is programmed in Codesys, through the Opta.
Its inputs are analog 0...10 V, 4...20 mA or PT100 (2- or 3-wire), 16 bit; its outputs are analog 0...10 V or 4...20 mA, 13 bit.
It also has 4 PWM outputs (10 kHz, 8...28.8 V DC, 100 mA) and an RTD input for PT100 (-25...+400 °C, ±1.5 °C).
It is 70 mm wide and mounts on DIN rail.
| Category | |
| Manufacturer | Finder |
| Model | 8A.26 |
| Module Type | Analog I/O |
| Compatible With | Finder Opta Codesys 8A.04.9.024.832C |
| Programming Language | Codesys, through the Opta |
| Number of Inputs | 6 |
| Input Type | Analog 0...10 V, 4...20 mA or PT100 (2- or 3-wire), 16 bit |
| Number of Outputs | 2 |
| Output Type | Analog 0...10 V or 4...20 mA, 13 bit |
| Analog Outputs | 2 (programmable up to 8), 0...10 V or 4...20 mA |
| PWM Outputs | 4, 10 kHz, 8...28.8 V DC, 100 mA |
| RTD Input | PT100, -25...+400 °C, ±1.5 °C |
| Input Voltage | (12...24)V DC |
| Input Operating Range | 9.6...28.8 V |
| Rated Power | 1 W |
| Module Width (mm) | 70 |
| Mounting Type | DIN Rail |
| Termination Style | Screw Terminal |
| Wire Size | 20-14 AWG |
| Operating Temperature (°C) | -20...+50 |
| Protection Category | IP 20 |
| Approvals | CE, cULus, ENEC, UKCA |
