Product Description
Description: Line Monitoring Relay • Type: Voltage Sensing AC, Phase Loss • Trip Range: 170 ~ 520V AC • Delay Time: Fixed, 0.50 Sec • Voltage - Supply: 208 ~ 480VAC • Circuit: 2C DPDT • Contact Rating @ Voltage: 8 A • Mounting Type: DIN Rail
| Product Information | | Resources |
| Manufacturer | Finder | | Product Category | Monitors | | Product Sub Category | Line Monitoring Relay | | Series | 70 Series | | Model | Type 70.62 |
| | |
Product Attribute
| Attribute Value
|
| Type | Voltage Sensing AC, Phase Loss |
| Trip Range | 170 ~ 520V AC |
| Delay Time | Fixed, 0.50 Sec |
| Voltage - Supply | 208 ~ 480VAC |
| Output Type | Relay |
| Circuit | 2C DPDT |
| Contact Rating @ Voltage | 8 A |
| Mounting Type | DIN Rail |

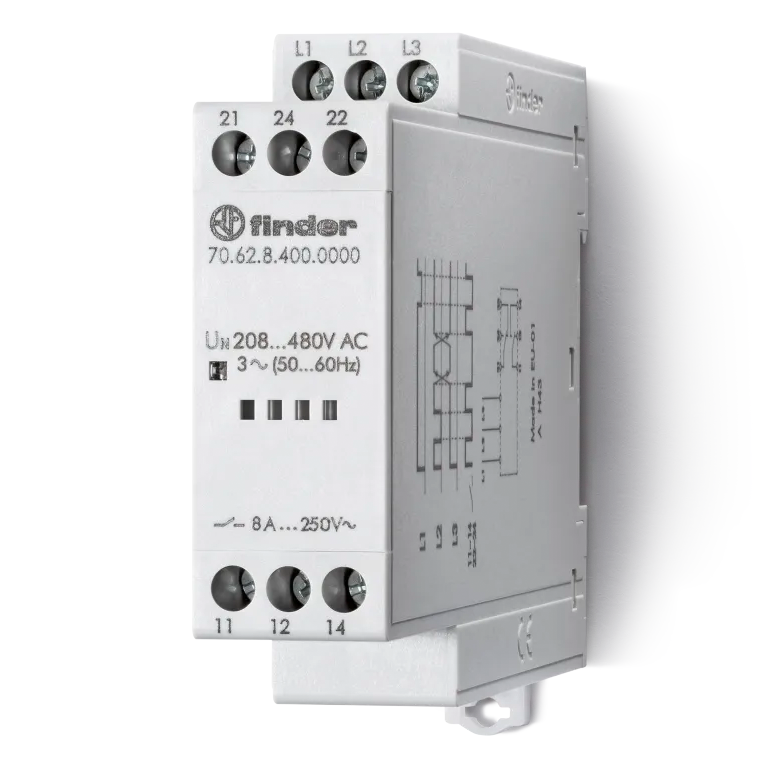

| TYPE 70.62 - VOLTAGE MONITORING RELAY |
| Series Description: Type 70.62 relays for phase sequence and phase failure monitoring for three-phase networks (208 Â… 480 V). |
- Universal use (systems with UN from 208 V to 480 V, 50/60 Hz)
- Detects phase failure error even in the presence of regenerated voltages
- Positive safety logic (make output contact opens when the measured value is out of limits)
- 2 changover output contact rated 8 A
- Modular, 35mm wide
- 35 mm rail (EN 60715) mounting
|
RoHS Compliant
