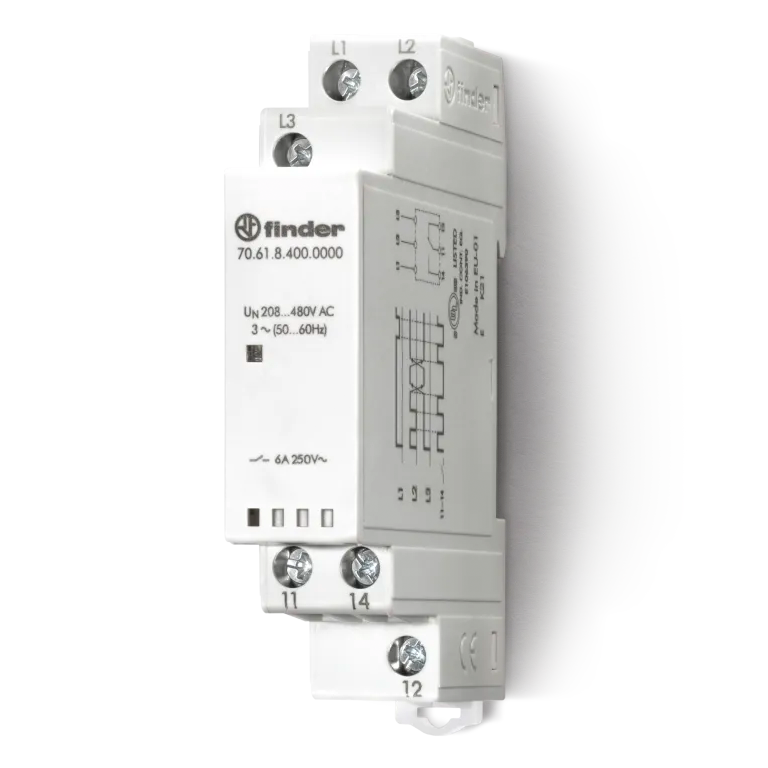

70.61.8.400.0000
| Manufacturer |
Finder |
| Manufacturer Product Number |
70.61.8.400.0000 |
Bulk Pricing
Qty.Price
1
10
25
50
100
$90.53
$83.29
$77.12
$71.80
$68.27
Product Description
Description: Line Monitoring Relay • Type: Voltage Sensing AC, Phase Loss • Trip Range: 170 ~ 500V AC • Delay Time: Fixed, 0.50 Sec • Voltage - Supply: 208 ~ 240VAC • Circuit: 1C SPDT • Contact Rating @ Voltage: 6 A • Mounting Type: DIN Rail
| Product Information | | Resources |
| Manufacturer | Finder | | Product Category | Monitors | | Product Sub Category | Line Monitoring Relay | | Series | 70 Series | | Model | Type 70.61 |
| | |
Product Attribute
| Attribute Value
|
| Type | Voltage Sensing AC, Phase Loss |
| Trip Range | 170 ~ 500V AC |
| Delay Time | Fixed, 0.50 Sec |
| Voltage - Supply | 208 ~ 240VAC |
| Output Type | Relay |
| Circuit | 1C SPDT |
| Contact Rating @ Voltage | 6 A |
| Mounting Type | DIN Rail |
| TYPE 70.61 - VOLTAGE MONITORING RELAY |
| Series Description: Relay Type 70.61 for phase sequence and phase failure monitoring for three-phase networks (208
480 V). |
- Universal use (systems with UN from 208 V to 480 V, 50/60 Hz)
- Detects phase failure error even in the presence of regenerated voltages
- Positive safety logic (the output relay contact opens in case of error detection)
- 1 changeover output contacts rated 6 A
- Modular, 17.5mm wide
- 35 mm rail mounting (EN 60715)
- European patent filed for the innovative principle underlying the 3-phase monitoring and error detection system
|
Product Videos
Custom Field
RoHS Compliant
