Product Description
Description: Line Monitoring Relay • Type: Voltage Asymmetry, Voltage Sensing AC, Phase Loss • Trip Range: 170 ~ 520V AC • Delay Time: 0.5 Sec ~ 60 Sec • Voltage - Supply: 208 ~ 480VAC • Circuit: 1C SPDT • Contact Rating @ Voltage: 6 A • Mounting Type: DIN Rail
| Product Information | | Resources |
| Manufacturer | Finder | | Product Category | Monitors | | Product Sub Category | Line Monitoring Relay | | Series | 70 Series | | Model | Type 70.41 |
| | |
Product Attribute
| Attribute Value
|
| Type | Voltage Asymmetry, Voltage Sensing AC, Phase Loss |
| Trip Range | 170 ~ 520V AC |
| Delay Time | 0.5 Sec ~ 60 Sec |
| Voltage - Supply | 208 ~ 480VAC |
| Output Type | Relay |
| Circuit | 1C SPDT |
| Contact Rating @ Voltage | 6 A |
| Mounting Type | DIN Rail |

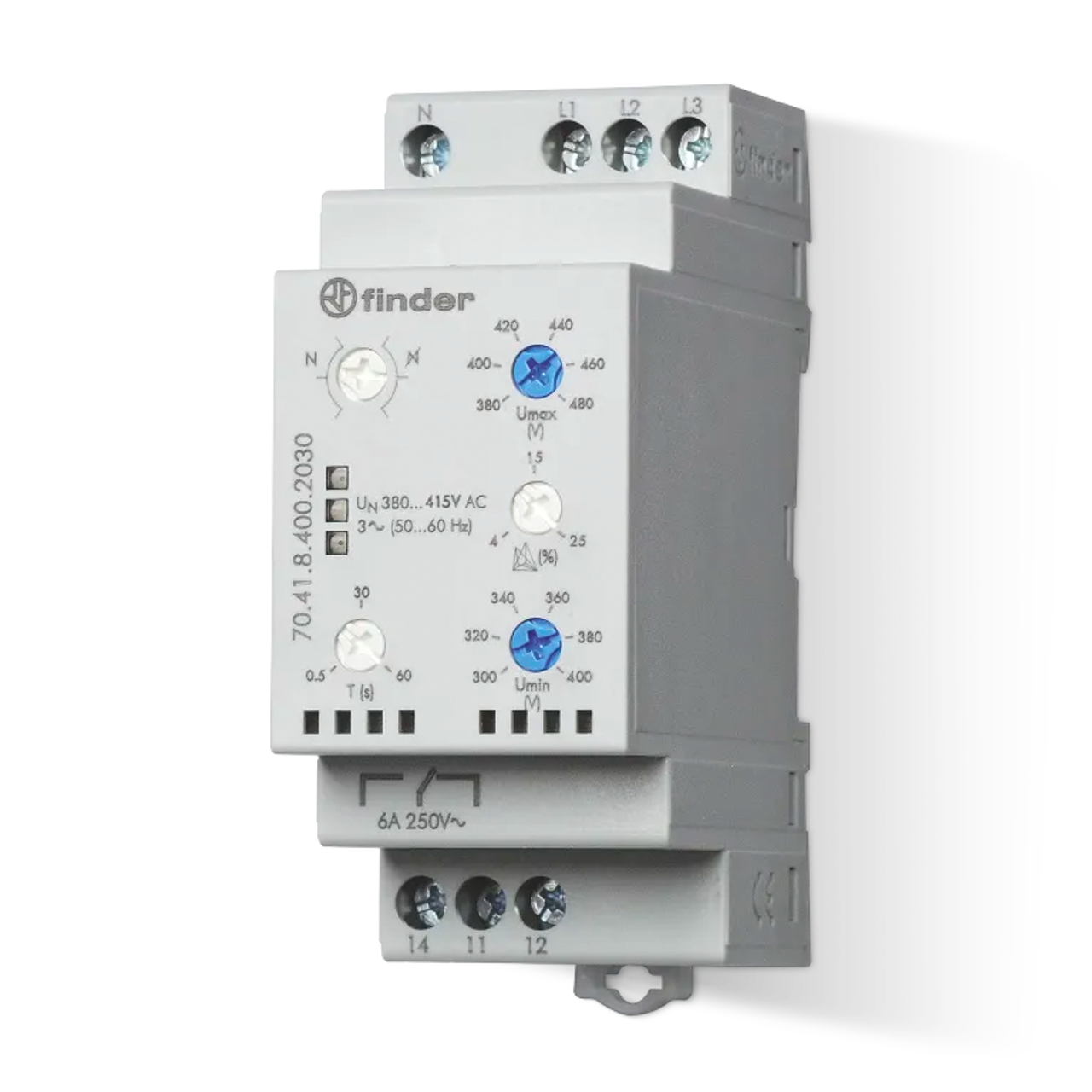

| TYPE 70.41 - LINE MONITORING RELAY |
| Series Description: Type 70.41 – Line voltage monitoring relay for three-phase networks. Multi-function model for monitoring (380 … 415)V three-phase networks, with or without neutral. Monitoring modes: window (overvoltage + undervoltage), phase rotation, phase loss , neutra |
- Detects phase failure even in the presence of regenerated voltages
- Positive safety logic (make output contact opens when the measured value is out of limits)
- All functions and rating can be easily set using the front face selector and trimmer
- “Blade + cross” – both flat blade and cross head screwdrivers can be used to select the function, adjust the trimmer and release the rail clip
- Clear and immediate identification of the status through colored LEDs
- 1 changeover output contact – rated 6 A
- Modular, 35 mm wide
- 35 mm rail (EN 60715) mounting
- Cadmium-free Contacts
|
RoHS Compliant
