To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Finder |
| Manufacturer Product Number | 39.41.8.230.5060 |
| Description | Input/Output Module; AC Input Module; 1C SPDT; 230VAC; MasterINPUT |
| Datasheet | Download Datasheet |

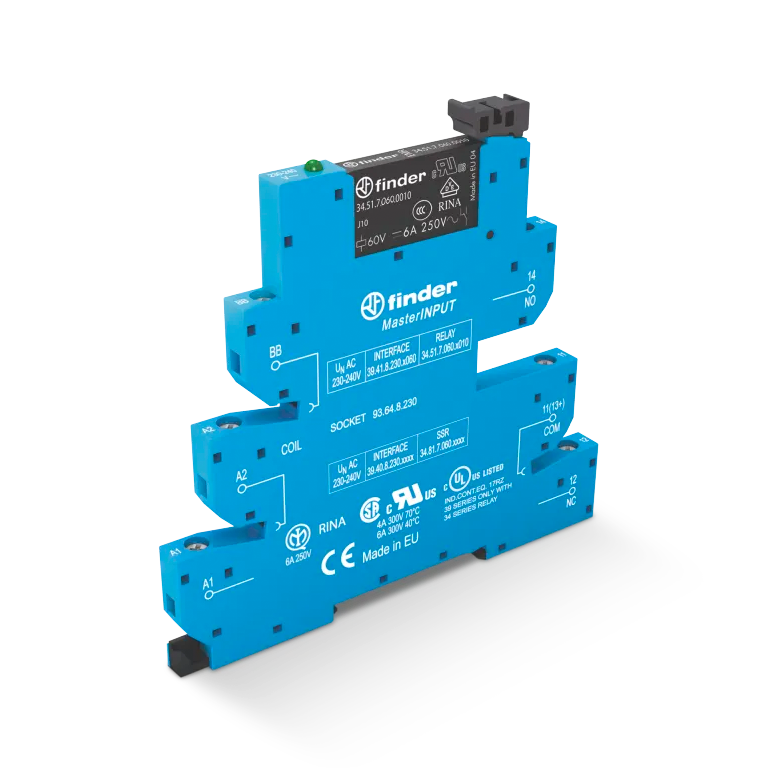

The Finder 39.41.8.230.5060 is a 6.2 mm MasterINPUT input/output module with 1C SPDT contacts, rated 6 A and switching up to 400VAC, driven by a 230VAC coil and drawing 4.3 mA.
It has DIN Rail mounting and screw terminals and contacts in AgNi + Au.
| Category | |
| Manufacturer | Finder |
| Model | 39.41 |
| Sub-Family | MasterINPUT |
| Module Type | AC Input Module |
| Output Technology | Electromechanical Relay |
| Contact Configuration | 1C SPDT |
| Switching Voltage | 400VAC - Max |
| Contact Material | AgNi + Au |
| Electrical Life (cycles) | 60,000 cycles |
| Load Current (A) | 6 |
| Coil Voltage | 230VAC |
| Coil Current (mA) | 4.3 |
| Operate Time (ms) | 5 |
| Release Time (ms) | 6 |
| Mechanical Life (cycles) | 10,000,000 cycles |
| Termination Style | Screw Terminal |
| Mounting Type | DIN Rail |
| Module Width (mm) | 6.2 |
| Protection Category | IP 20 |
| Operating Temperature (°C) | -40…+70 |
| Color | Blue |
