To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Finder |
| Manufacturer Product Number | 39.40.7.012.7048 |
| Description | Input/Output Module; DC Input Module; 1A SPST-NO; 12VDC; MasterINPUT |
| Datasheet | Download Datasheet |

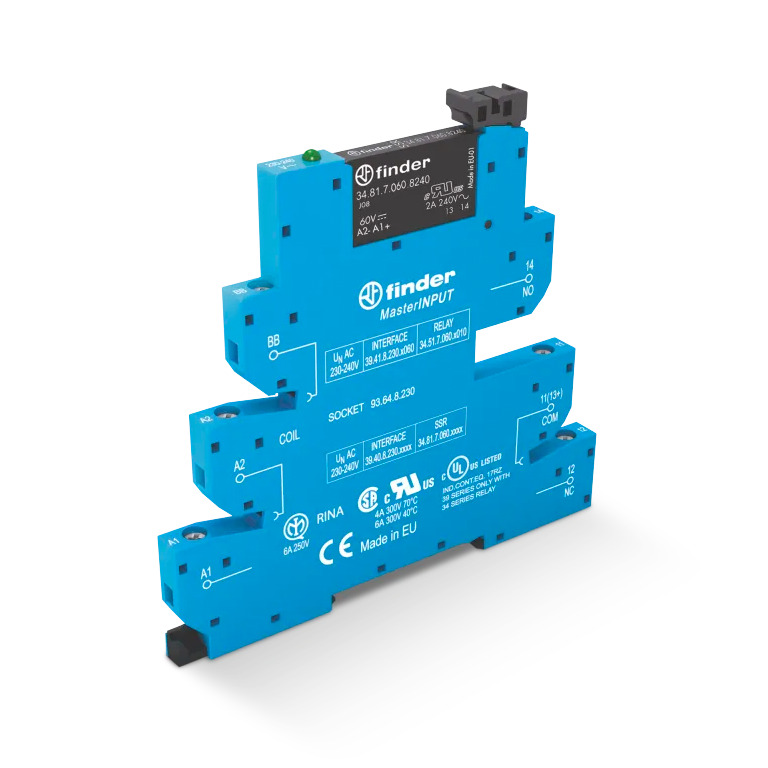

The Finder 39.40.7.012.7048 is a 6.2 mm MasterINPUT input/output module with 1A SPST-NO output, rated 0.1 A at 48 V DC and switching 1.5 to 48 V DC, driven by a 12VDC input and drawing 20.7 mA.
It has DIN Rail mounting and screw terminals.
| Category | |
| Manufacturer | Finder |
| Model | 39.40 |
| Sub-Family | MasterINPUT |
| Module Type | DC Input Module |
| Output Technology | Solid State Relay |
| Contact Configuration | 1A SPST-NO |
| Switching Voltage | 1.5…48 V DC |
| Output Rating | 0.1 A - 48 V DC |
| Load Current (A) | 0.1 |
| Load Voltage | 48/60 V DC |
| Output Type | DC |
| Input Voltage | 12VDC |
| Input Current (mA) | 20.7 |
| Operate Time (ms) | 0.04 |
| Release Time (ms) | 0.6 |
| Input Version | DC sensitive |
| Termination Style | Screw Terminal |
| Mounting Type | DIN Rail |
| Module Width (mm) | 6.2 |
| Protection Category | IP 20 |
| Operating Temperature (°C) | -20…+55 |
| Color | Blue |
