Product Description

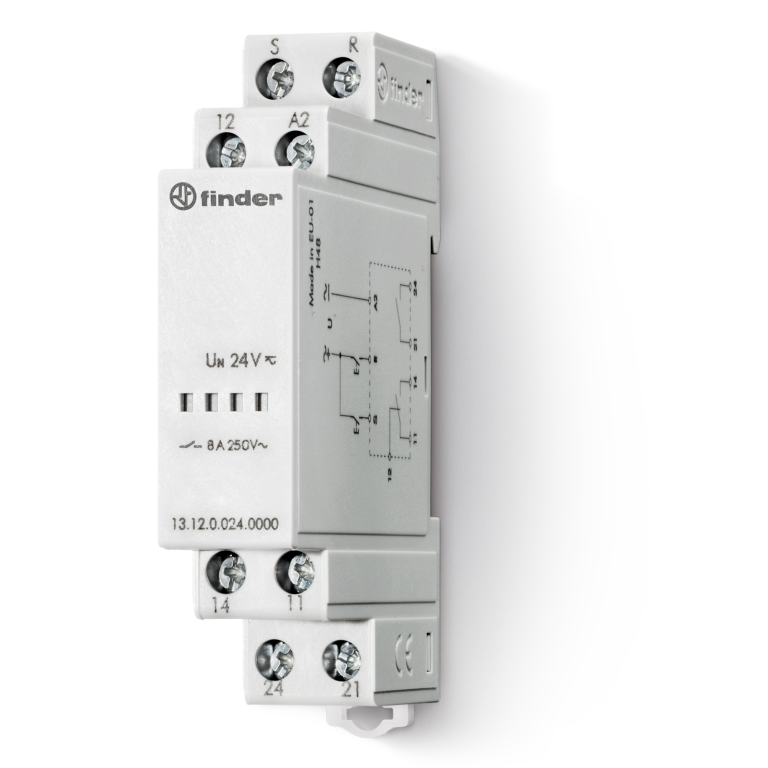

Description: Alternating/Sequencing Relay • Mounting Type: DIN Rail • Coil Voltage: 24VAC/DC • Contact Configuration: 1C+1A SPDT+SPST-NO • Contact Rating (Current): 8 A • Switching Voltage: 400VAC - Max • Coil Type: Latching, Single Coil • Termination Style: Screw Terminal
| Product Information | Resources |
|
|
RoHS Compliant| Specifications |
| Product Attribute | Attribute Value |
| Mounting Type | DIN Rail |
| Coil Voltage | 24VAC/DC |
| Contact Configuration | 1C+1A SPDT+SPST-NO |
| Contact Rating (Current) | 8 A |
| Switching Voltage | 400VAC - Max |
| Coil Type | Latching, Single Coil |
| Termination Style | Screw Terminal |
| Must Operate Voltage | 19.2 VAC/DC |
| Operating Temperature | -10°C ~ 60°C |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Relay Type | Impulse |
| Series Features |
| TYPE 13.12 - CALL AND RESET RELAY |
| Series Description: Type 13.12 Call and Reset Relays. 1 CO + 1NO contacts, 17.5 mm wide. 35 mm rail (EN 60715) or flange mount. |
|
