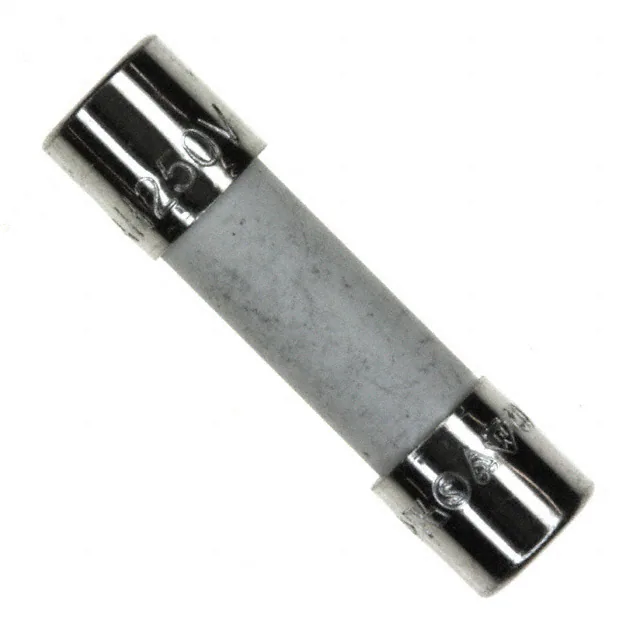

  • Eaton Bussmann BK/S505-2-R Ceramic Body Fuses

    • To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.

    BK/S505-2-R

    Manufacturer Eaton Bussmann
    Manufacturer Product Number BK/S505-2-R

    This item is out of stock. Please submit an RFQ or call 800-526-5376 for pricing and delivery.

    Product Description

    Description: Ceramic Body Fuses • Mounting Type: Through Hole • Fuse Type: Cartridge, Ceramic • Current Rating (Amps): 5 A • Response Time: Fast Blow • Package / Case: 3AB, 3AG, 1/4" x 1-1/4" (Axial) • Size / Dimension: 0.266" Dia x 1.292" L (6.76mm x 32.82mm) • Voltage Rating - AC: 250 V • Voltage Rating - DC: 125 V

          Product Information       Resources
    ManufacturerEaton - Bussmann
    Product Category Fuses
    Product Sub Category Ceramic Body Fuses
    SeriesABC Series

      Download Datasheet

      RoHS Compliant
          Specifications
    Product Attribute
    		Attribute Value
    Mounting TypeThrough Hole
    Fuse TypeCartridge, Ceramic
    Current Rating (Amps)5 A
    Response TimeFast Blow
    Package / Case3AB, 3AG, 1/4" x 1-1/4" (Axial)
    Size / Dimension0.266" Dia x 1.292" L (6.76mm x 32.82mm)
    Voltage Rating - AC250 V
    Voltage Rating - DC125 V
    Breaking Capacity @ Rated Voltage200A AC, 10kA DC
    Melting I²t32.83
    Approval AgencyCSA, UL
    Operating Temperature-
    Color-
