To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | ETRI / Rosenberg |
| Manufacturer Product Number | N88-45702 |
| Description | Motorized Impeller; 380-480 / 460 / 230 VAC; 9947 CFM; 2800 RPM; IP54 |
| Datasheet | Download Datasheet |

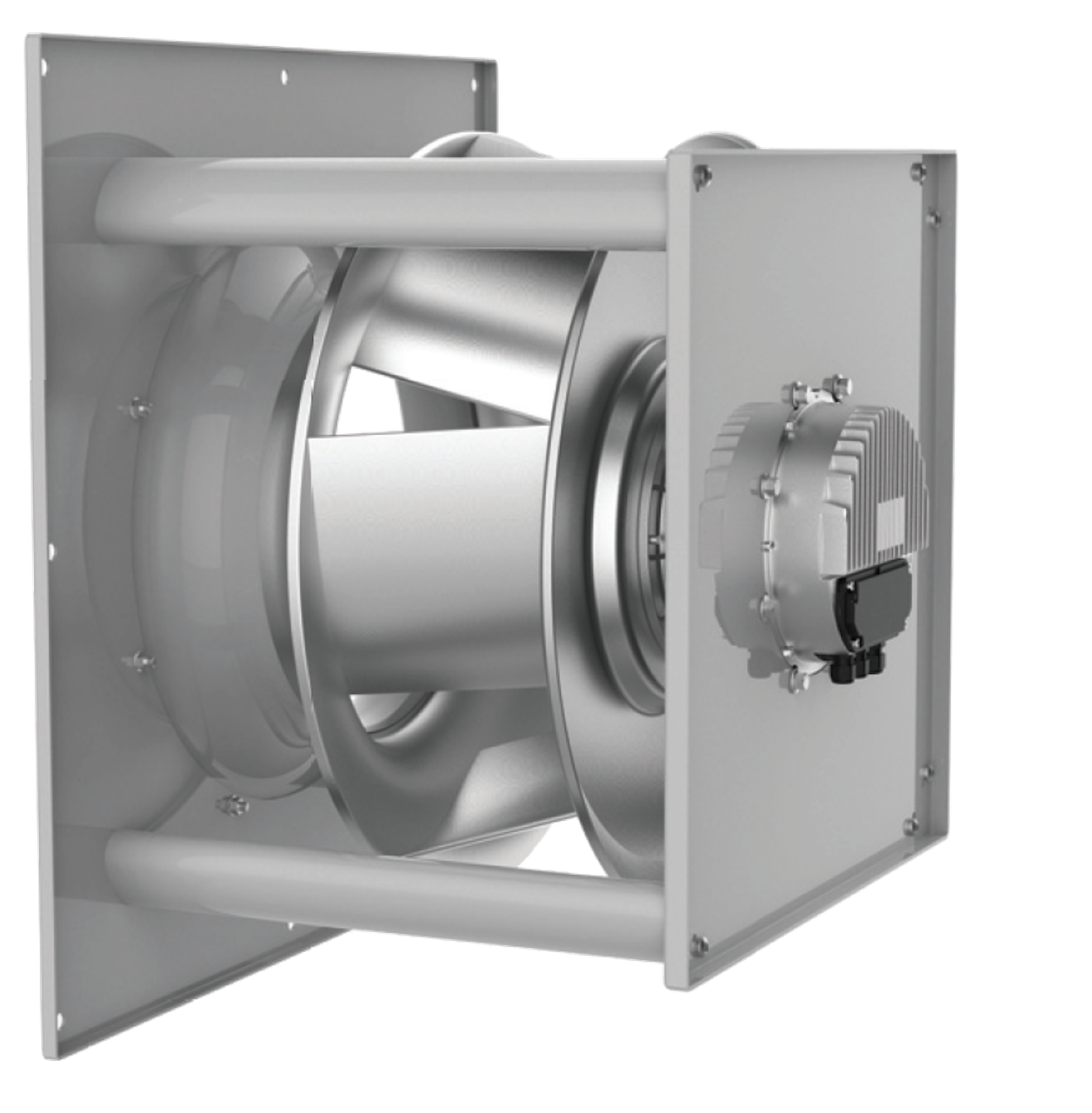

The ETRI / Rosenberg N88-45702 is a 380-480 / 460 / 230 VAC EC motorized impeller moving 9947 CFM (281.67 m³/min) at 2,800 RPM, with a noise level of 88 dBA.
Environmental protection: IP54.
It draws 6700 W. It has an EC motor. The impeller is sheet aluminum. It operates from -25 to +40 °C.
| Category | |
| Manufacturer | ETRI / Rosenberg |
| Model | GKHM 450-CII.147.6IF IE Gen3+ |
| Fan Type | Motorized Impeller |
| Impeller Diameter (mm) | 450 |
| Rated Voltage | 380-480 / 460 / 230 VAC |
| Air Flow | 9947 CFM (281.67 m3/min) |
| Speed (RPM) | 2800 |
| Noise Level (dBA) | 88 |
| Input Power (W) | 6700 |
| Environmental Protection | IP54 |
| Motor Type | EC |
| Impeller Material | sheet aluminum |
| Operating Temperature (°C) | -25...+40 |
