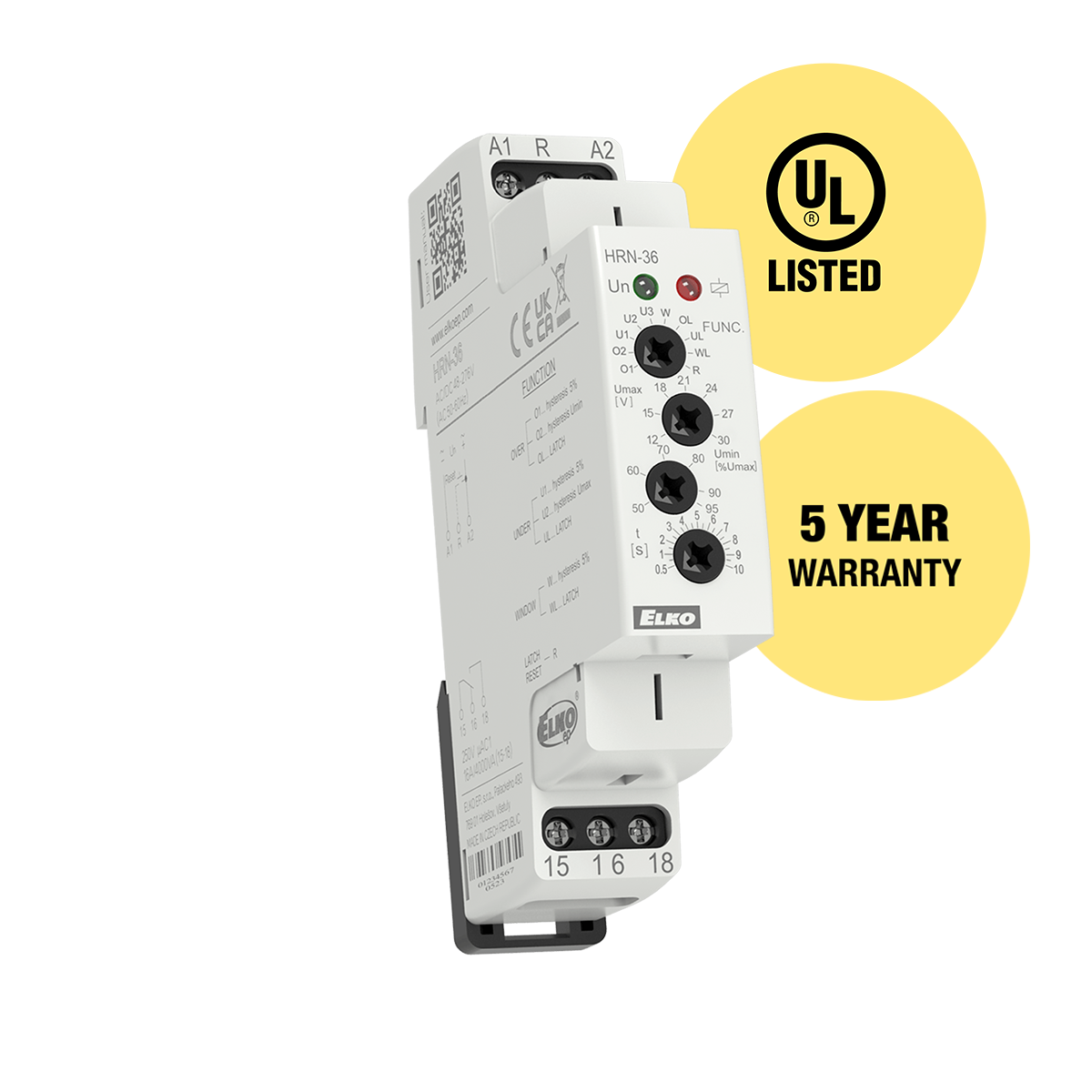

Description: Voltage Monitor Relays • Contact Configuration: 1C SPDT • Current rating:: 16 A • Supply/monitored voltage:: DC 6 30 V • Mounting:: Din Rail • Upper level setting (Umax):: 12-30VDC • Lower level setting (Umin):: 30-95%Umax • Time delay (d):: 300 ms • Time delay (t):: adjustable, 0.5 10 s
| Product Information | Resources |
|
|
RoHS Compliant| Specifications |
| Product Attribute | Attribute Value |
| Contact Configuration | 1C SPDT |
| Current rating: | 16 A |
| Supply/monitored voltage: | DC 6 30 V |
| Mounting: | Din Rail |
| Upper level setting (Umax): | 12-30VDC |
| Lower level setting (Umin): | 30-95%Umax |
| Time delay (d): | 300 ms |
| Time delay (t): | adjustable, 0.5 10 s |
| Contact material: | AgNi |
| Breaking capacity: | 4000 VA/AC1, 384 W/DC1 |
| Switching voltage: | 250 V AC/24 V DC |
| Power dissipation (max.): | 1.2 W |
| Contact type: | 1× changeover |
| Mechanical life: | 10.000.000 ops. |
| Electrical life (AC1): | 100.000 ops. |
| Supply/monitored terminals: | A1-A2 |
| Consumption (max.): | - |
| Max. permanent voltage: | DC 36 V |
| Peak overload (1 s): | DC 48 V |
| Operating temperature: | 20 .. +55 °C (4 °F .. 131 °F) |
| Storage temperature: | 30 .. +70 °C (22 °F .. 158 °F) |
| Dielectric strength: | AC 4 kV (supply output) |
| Operating position: | any |
| Protection degree | IP40 front panel / IP20 terminals |
| Standards: | EN 60255-1, EN 60255-26, EN 60255-27 |
| Series Features |
| HRN-3x |
| Series Description: Multifunction voltage monitoring relay in 1P - AC/DC |
|
