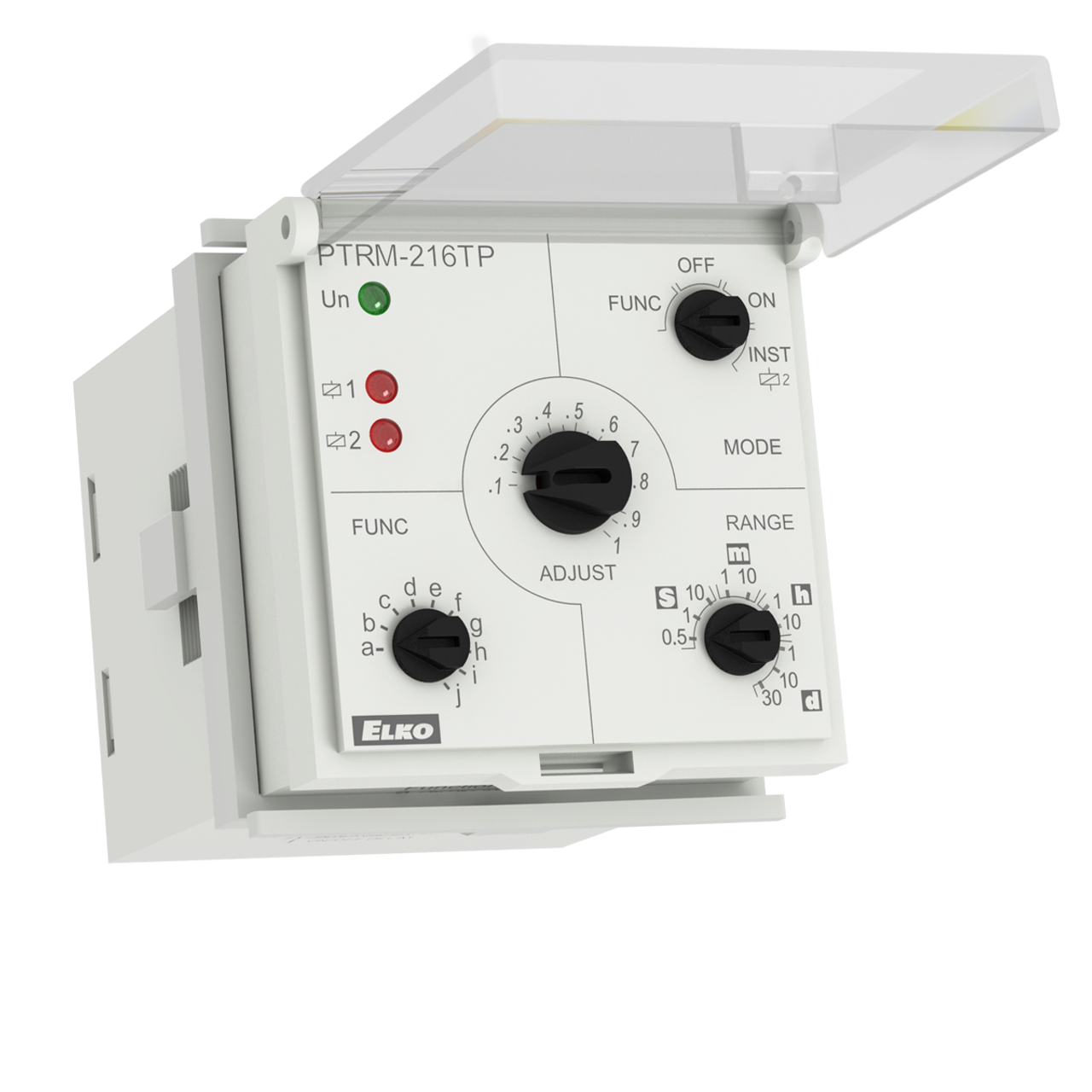

Description: Time Delay Relay • Multi-Function • Contact Configuration: 2C DPDT • Current rating:: 16 A • Voltage range:: 12-240 VAC/DC • Mounting:: 11 pin octal • Time ranges:: 50 ms-30 days • Time setting:: rotary switch and potentiometer • Number of functions:: 10
| Product Information | Resources |
|
|
RoHS Compliant| Specifications |
| Product Attribute | Attribute Value |
| Contact Configuration | 2C DPDT |
| Current rating: | 16 A |
| Voltage range: | 12-240 VAC/DC |
| Mounting: | 11 pin octal |
| Time ranges: | 50 ms-30 days |
| Time setting: | rotary switch and potentiometer |
| Number of functions: | 10 |
| Number of contacts: | 2x changeover/SPDT (AgNi) |
| Breaking capacity: | 4000 VA/AC1, 384 W/DC |
| Switching voltage: | 250 V AC/24 V DC |
| Max. power dissipation: | 2.4 W |
| Output indication: | multifunction red LED |
| Mechanical life: | 10.000.000 ops. |
| Electrical life (AC1): | 100.000 ops. |
| Power pins: | 2, 10 |
| Power input (max.): | 2.5 VA/1.5 W |
| Supply voltage tolerance: | ±10 % |
| Supply indication: | green LED |
| Time deviation: | 5 % - mechanical setting |
| Repeat accuracy: | 0.2 % - set value stability |
| Temperature coefficient: | 0.01 %/°C, at = 20 °C (0.01 %/°F, at = 68 °F) |
| Operating temperature: | -20 °C to +55 °C (-4 °F to 131 °F) |
| Storage temperature: | -30 °C to +70 °C (-22 °F to 158 °F) |
| Dielectric strength: | supply - output 1 (1, 3, 4): 2.5 kV AC supply - output 2 (8, 9, 11): 2.5 kV AC output 1 - output 2: 2.5 kV AC |
| Operating position: | any |
| Protection degree: | IP40 from front panel |
| Standards: | EN 61812-1 |
| Series Features |
| PTRM-216T, PTRM-216K |
| Series Description: Multifunction time relay with potential-free control input |
|
