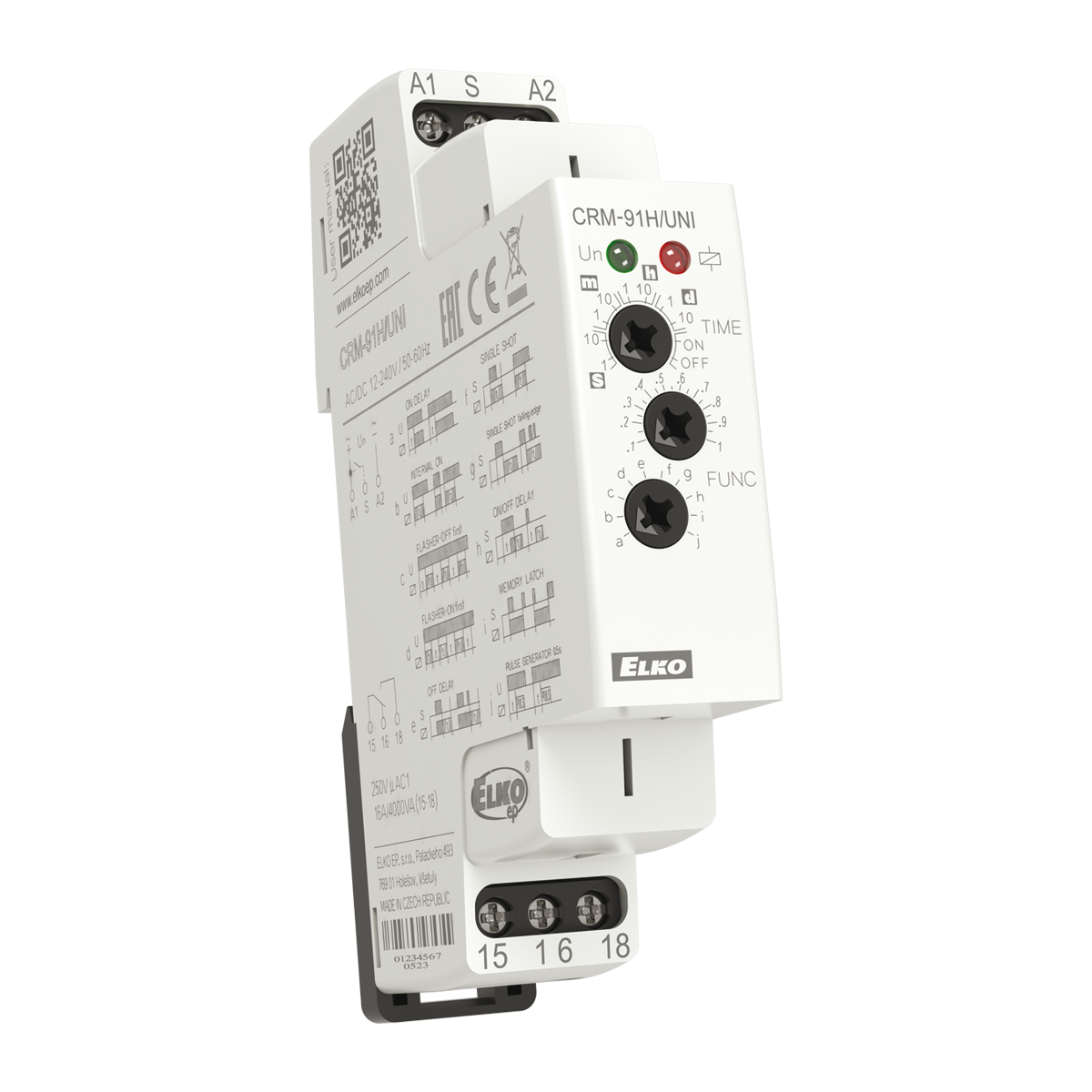

  • ELKP CRM-91H/UNI Multi-Function Time Delay Relay
  • ELKP CRM-91H/UNI Multi-Function Time Delay Relay

    • To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.

    CRM-91H/UNI

    Manufacturer ELKO
    Manufacturer Product Number CRM-91H/UNI
    Adding to cart… category.add_cart_announcement

    Bulk Pricing

    Qty.Price
    1 3 5 10
    $77.63 $70.11 $62.10 $58.74

    Product Description

    Description: Time Delay Relay • Multi-Function • Contact Configuration: 1C SPDT • Current rating:: 16 A • Voltage range:: 12-240 VAC/DC • Mounting:: Din Rail • Time ranges:: 0.1 s-10 days • Time setting:: rotary switch and potentiometer • Number of functions:: 10

          Product Information       Resources
    ManufacturerELKO
    Product Category Time Delay Relay
    Product Sub Category Multi-Function
    SeriesCRM-91H, CRM-93H

      Download Datasheet

      RoHS Compliant
          Specifications
    Product Attribute
    		Attribute Value
    Contact Configuration1C SPDT
    Current rating:16 A
    Voltage range:12-240 VAC/DC
    Mounting:Din Rail
    Time ranges:0.1 s-10 days
    Time setting:rotary switch and potentiometer
    Number of functions:10
    Number of contacts 1:1x changeover/SPDT (AgNi)
    Breaking capacity:4000 VA/AC1, 384 W/DC
    Electrical life (AC1):100.000 ops.
    Number of contacts 2 (3):-
    Current rating:-
    Breaking capacity:-
    Electrical life (AC1):-
    Switching voltage:250 V AC/24 V DC
    Max. power dissipation:1.2 W
    Output indication:multifunction red LED
    Mechanical life:10.000.000 ops.
    Supply terminals:A1 - A2
    Power input (max.):2 VA/1.5 W
    Supply voltage tolerance:-15 %; +10 %
    Supply indication:green LED
    Time deviation:5 % - mechanical setting
    Repeat accuracy:0.2 % - set value stability
    Temperature coeffi cient:0.01 %/°C, at = 20 °C (0.01 %/°F, at = 68 °F)
    Operating temperature:-20 °C to 55 °C (-4 °F to 131 °F)
    Storage temperature:-30 °C to 70 °C (-22 °F to 158 °F)
    Dielectric strength:supply - output 1: 4kV AC
    Operating position:any
    Protection degree:IP40 from front panel/IP20 terminals
    Standards:EN 61812-1
          Series Features
    CRM-91H, CRM-93H
    Series Description: Multifunction time relays
    • Multifunction time relay for universal use in automation, control and regulation or in house installations.
    • Comfortable and well-arranged function and time-range setting by rotary switches.
    • Multifunction red LED fl ashes or shines depending on the operating status.
