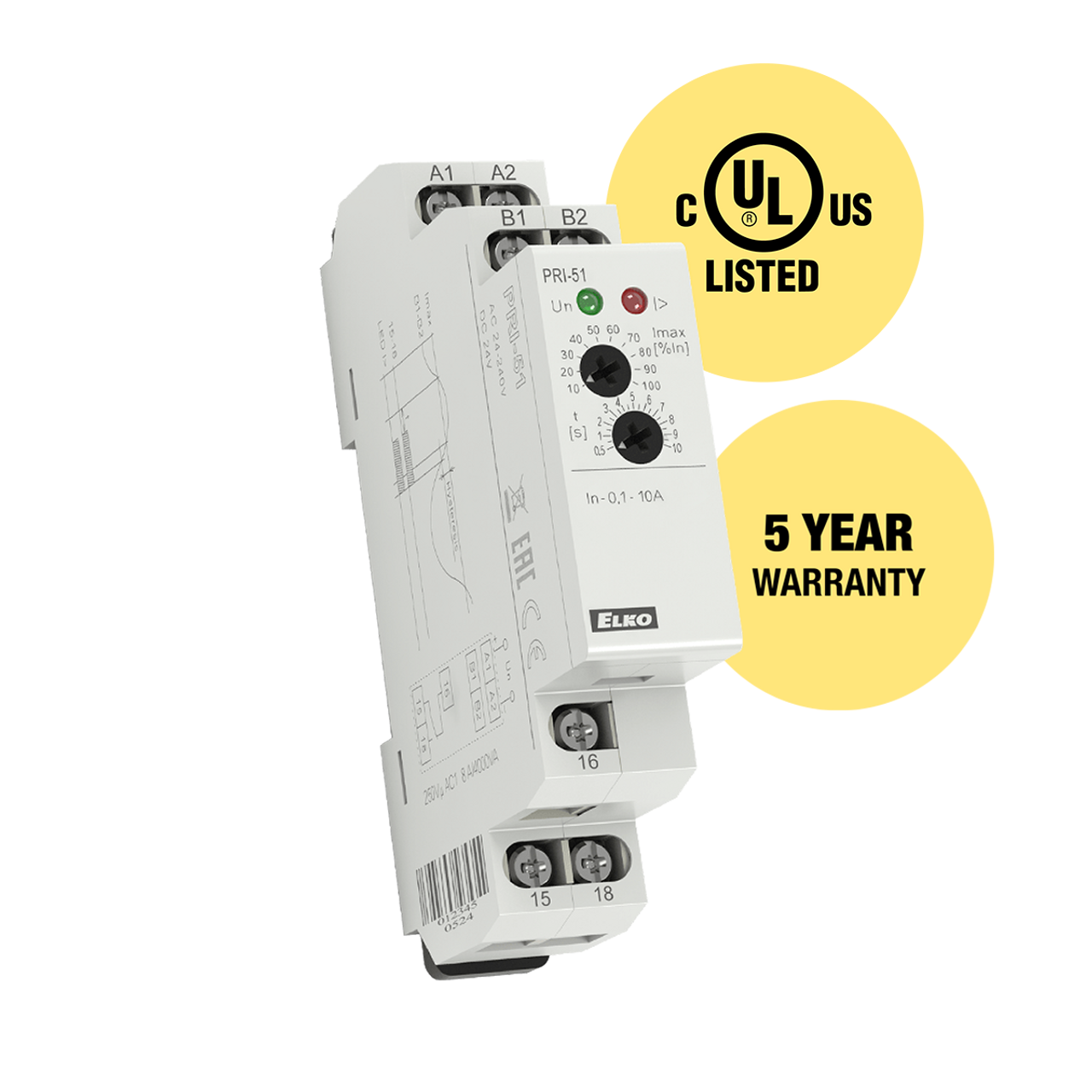

Product Description
Description: Current Monitor Relays • Contact Configuration: 1C SPDT • Current rating:: 8A • Voltage range:: AC 24 - 240 V and DC 24 V (AC 50-60 Hz) • Mounting:: Din Rail • Current range:: AC 0.5-5 A • Time delay:: adjustable 0.5 - 10 s
| Product Information | Resources |
|
|
RoHS Compliant| Specifications |
| Product Attribute | Attribute Value |
| Contact Configuration | 1C SPDT |
| Current rating: | 8A |
| Voltage range: | AC 24 - 240 V and DC 24 V (AC 50-60 Hz) |
| Mounting: | Din Rail |
| Current range: | AC 0.5-5 A |
| Time delay: | adjustable 0.5 - 10 s |
| Breaking capacity: | 2000 VA/AC1, 240 W/DC |
| Output indication: | red LED |
| Supply terminals: | A1 - A2 |
| Number of contacts: | 1x changeover/SPDT (AgNi/Silver Alloy) |
| Burden: | max. 25 VA/1.6 W |
| Max. dissipated power (Un + terminals): | 2.5 W |
| Supply voltage tolerance: | -15 %; +10 % |
| Load: | between B1 - B2 |
| Max. permanent current: | 17 A |
| Inrush overload <1ms: | 50 A |
| Current adjustment: | potentiometer |
| Operating temperature: | –20 .. +55 °C (–4 °F .. 131 °F) |
| Storage temperature: | –30 .. +70 °C (–22 °F .. 158 °F) |
| Dielectric strength: | AC 4 kV (supply – output) |
| Operating position: | any |
| Protection degree | IP40 front panel / IP10 terminals |
| Standards: | EN 60255-1, EN 60255-26, EN 60255-27 |
| Series Features |
| PRI-51 |
| Series Description: Current monitoring relay of Imax level in 1P - AC |
|
