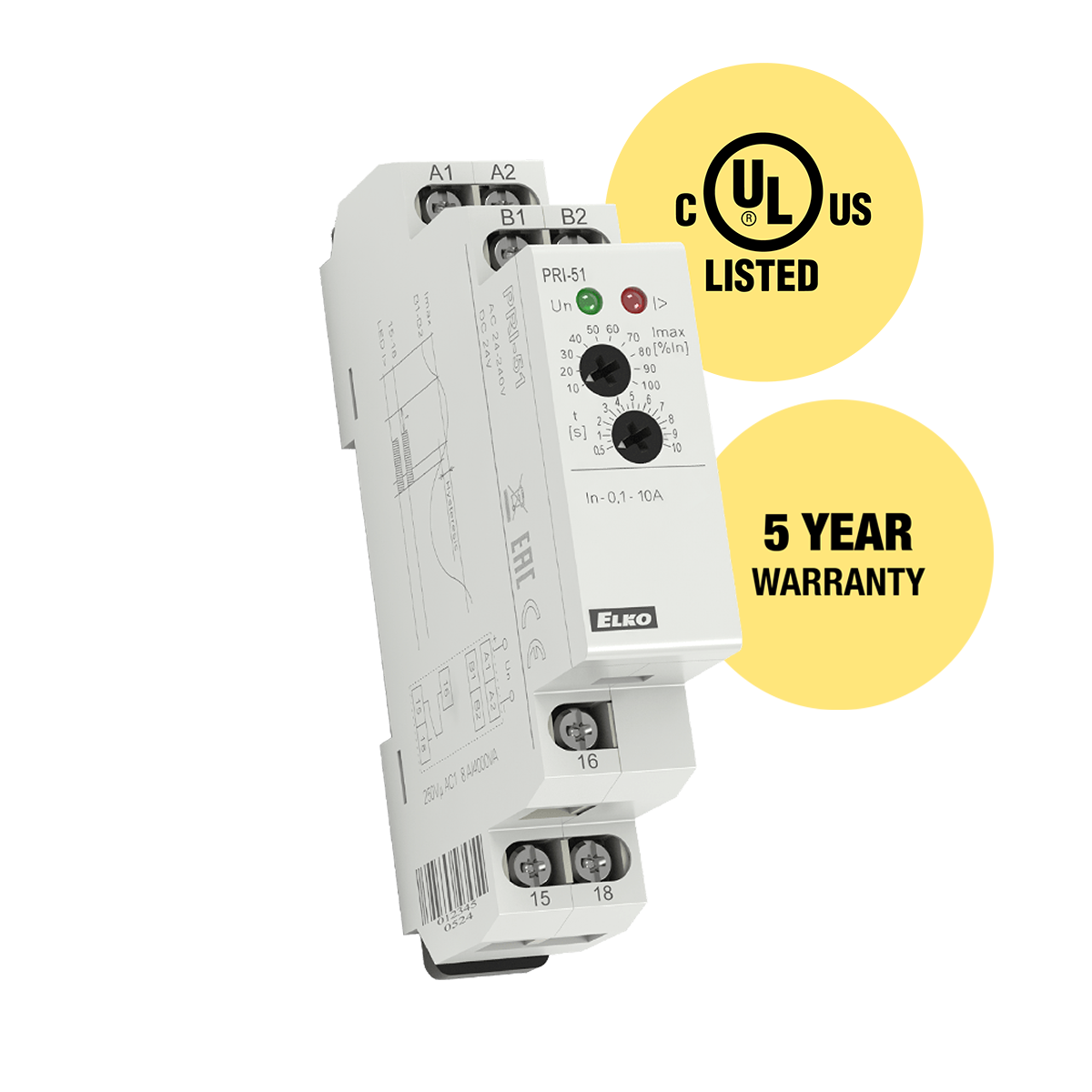

    PRI-51/1A

    Manufacturer ELKO
    Manufacturer Product Number PRI-51/1A

    This item is out of stock. Please submit an RFQ or call 800-526-5376 for pricing and delivery.

    Bulk Pricing

    Qty.Price
    1 3 5 10
    $67.28 $60.76 $53.82 $50.91

    Product Description

    Description: Current Monitor Relays • Contact Configuration: 1C SPDT • Current rating:: 8A • Voltage range:: AC 24 - 240 V and DC 24 V (AC 50-60 Hz) • Mounting:: Din Rail • Current range:: AC 0.1-1 A • Time delay:: adjustable 0.5 - 10 s

          Product Information       Resources
    ManufacturerELKO
    Product Category Monitoring Relay
    Product Sub Category Current Monitor Relays
    SeriesPRI-51

      Download Datasheet

      RoHS Compliant
          Specifications
    Product Attribute
    		Attribute Value
    Contact Configuration1C SPDT
    Current rating:8A
    Voltage range:AC 24 - 240 V and DC 24 V (AC 50-60 Hz)
    Mounting:Din Rail
    Current range:AC 0.1-1 A
    Time delay:adjustable 0.5 - 10 s
    Breaking capacity:2000 VA/AC1, 240 W/DC
    Output indication:red LED
    Supply terminals:A1 - A2
    Number of contacts:1x changeover/SPDT (AgNi/Silver Alloy)
    Burden:max. 25 VA/1.6 W
    Max. dissipated power (Un + terminals):2.5 W
    Supply voltage tolerance:-15 %; +10 %
    Load:between B1 - B2
    Max. permanent current:4 A
    Inrush overload <1ms:50 A
    Current adjustment:potentiometer
    Operating temperature:–20 .. +55 °C (–4 °F .. 131 °F)
    Storage temperature:–30 .. +70 °C (–22 °F .. 158 °F)
    Dielectric strength:AC 4 kV (supply – output)
    Operating position:any
    Protection degreeIP40 front panel / IP10 terminals
    Standards:EN 60255-1, EN 60255-26, EN 60255-27
          Series Features
    PRI-51
    Series Description: Current monitoring relay of Imax level in 1P - AC
    • It serves for monitoring of heating in rail-switches, heating cables, consumption of 1-phase motors, indicates current fl ow.
    • Flexible adjustment by potentiometer.
    • Adjustable delay 0.5 - 10 s to eliminate short current peaks.
    • It is possible to use for current scanning from current transformer.
    • Supply is galvanically separated from measured current, it must be in the same phase.
