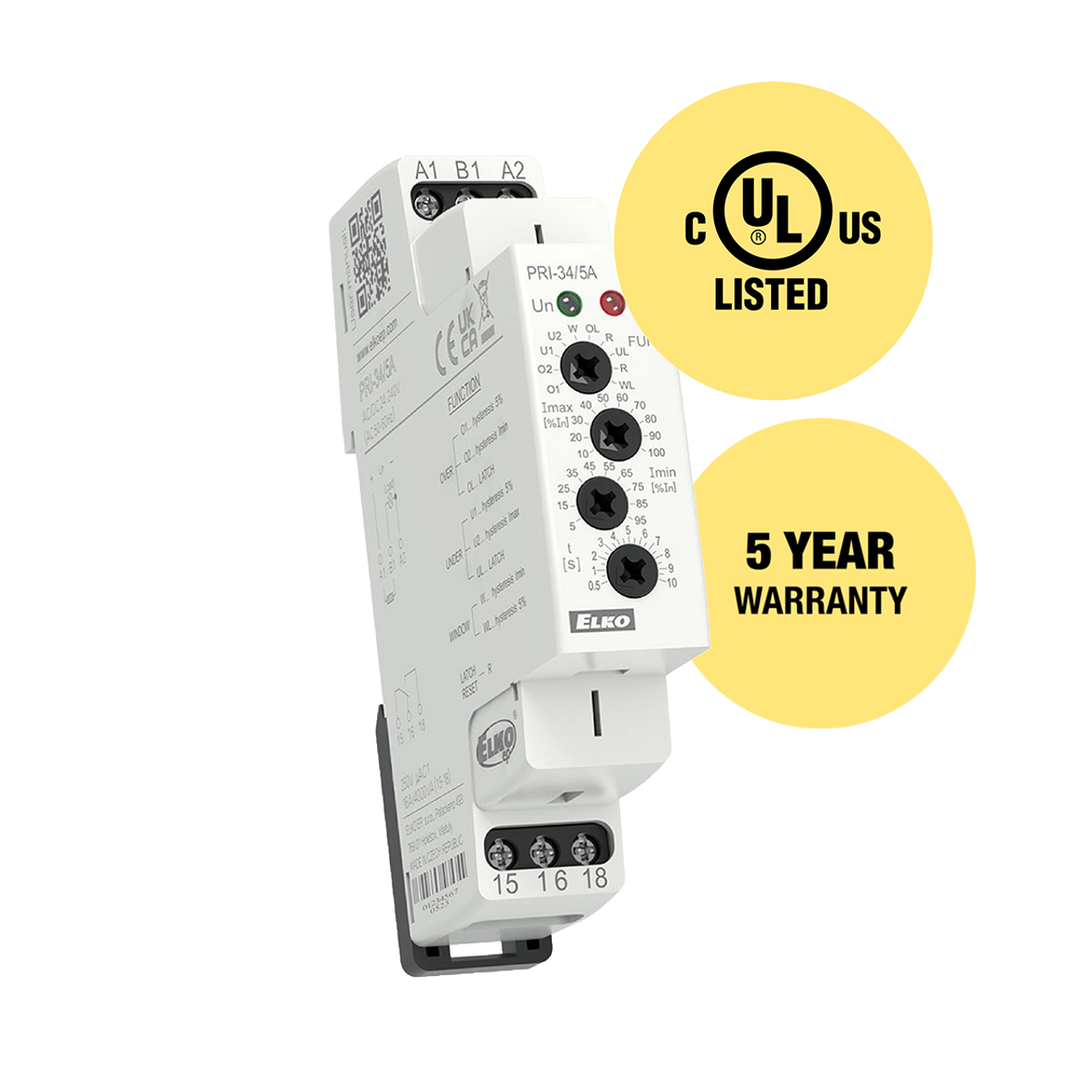

  • ELKP PRI-34/5A Current Monitor Relays
  • ELKP PRI-34/5A Current Monitor Relays

    • To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.

    PRI-34/5A

    Manufacturer ELKO
    Manufacturer Product Number PRI-34/5A
    Adding to cart… category.add_cart_announcement

    Bulk Pricing

    Qty.Price
    1 3 5 10
    $78.53 $70.93 $62.82 $59.42

    Product Description

    Description: Current Monitor Relays • Contact Configuration: 1C SPDT • Current rating:: 16 A • Supply voltage:: AC/DC 24 – 240 V (AC 50-60 Hz) • Mounting:: Din Rail • Current range: 5 A • Time delay (d):: 300 ms • Time delay (t):: adjustable, 0.5 – 10 s

          Product Information       Resources
    ManufacturerELKO
    Product Category Monitoring Relay
    Product Sub Category Current Monitor Relays
    SeriesPRI-34 Series

      Download Datasheet

      RoHS Compliant
          Specifications
    Product Attribute
    		Attribute Value
    Contact Configuration1C SPDT
    Current rating:16 A
    Supply voltage:AC/DC 24 – 240 V (AC 50-60 Hz)
    Mounting:Din Rail
    Current range5 A
    Time delay (d):300 ms
    Time delay (t):adjustable, 0.5 – 10 s
    Breaking capacity:4000 VA/AC1, 384 W/DC1
    Switching voltage:250 V AC/24 V DC
    Power dissipation (max.):1.2 W
    Mechanical life:10.000.000 ops.
    Number of contacts:1× changeover (AgNi)
    Electrical life (AC1):100.000 ops.
    Operating temperature:–20 .. +55 °C (–4 °F .. 131 °F)
    Storage temperature:–30 .. +70 °C (–22 °F .. 158 °F)
    Dielectric strength:AC 4 kV (supply – output)
    Operating position:any
    Protection degreeIP40 front panel / IP20 terminals
    Standards:EN 60255-1, EN 60255-26, EN 60255-27
    Supply terminals:A1 – A2
    Consumption (max.):3.8 VA/0.7 W
    Supply voltage tolerance:–15 %; +10 %
    Max. permanent current/peak overload (1 s):10A/16A
    Current setting (Imax):10 – 100 %In
    Current setting (Imin):5 – 95 %In
          Series Features
    PRI-34
    Series Description: Multifunction current monitoring relay in 1P - AC
    • It is used to monitor the value of alternating current, e.g.: motors, heating cables, lamps and other devices.
    • Power supply and monitoring circuits are not galvanically isolated.
    • Monitors current exceeding the upper current limit (Imax) and falling below the lower current limit (Imin) – according to the selected function.
    • Smooth adjustment of both current limits.
    • Adjustable time delay (to eliminate short-term current spikes).
    • Option to select functions with fault state memory (Latch).
    • Measures true root mean square value of the current - TRUE RMS.
    • Possibility to extend the current range using an external current transformer.
