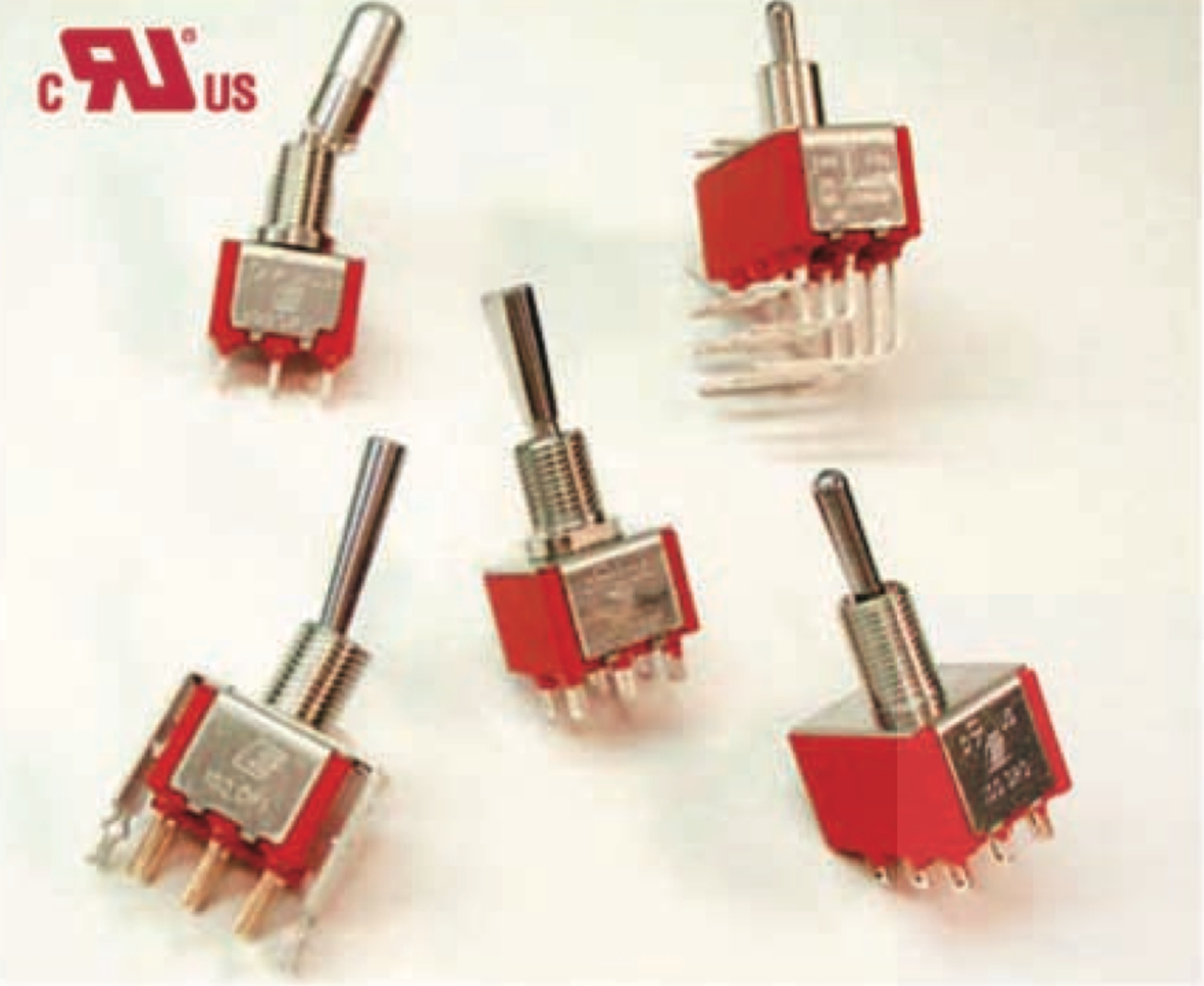

To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | E-Switch |
| Manufacturer Product Number | 100DP3T6B12M7RE |
| Description | Toggle Switch; DPDT; On-Off-On; 0.4VA (AC/DC); 20 V; Flat Anti-Rotation; PC Pin |
| Datasheet | Download Datasheet |
| Drawing | Download Dimensional Drawing |
The E-Switch 100DP3T6B12M7RE is a DPDT toggle switch with On-Off-On action. It is rated 0.4VA (AC/DC) at 20 V AC and 20 V DC, with gold contacts.
It has a flat anti-rotation actuator (12.30mm).
It mounts at a right angle, vertically on a NON-THD 0.297 high, keyway bushing and has PC pin terminals. Operating temperature is -40°C to 85°C. Its terminals are epoxy sealed at the base.
| Category | |
| Manufacturer | E-Switch |
| Circuit | DPDT |
| Switch Function | On-Off-On |
| Current Rating | 0.4VA (AC/DC) |
| Voltage Rating AC | 20 V |
| Voltage Rating DC | 20 V |
| Contact Material | Gold |
| Actuator Type | Flat Anti-Rotation |
| Actuator Height | 12.30mm |
| Illumination | Non-Illuminated |
| Mounting Type | Right Angle, Vertical |
| Termination Style | PC Pin |
| Bushing Thread | Unthreaded |
| Bushing | NON-THD 0.297 High, Keyway |
| Hardware | No |
| Sealing | Epoxy Sealed at Base of Terminal |
| Operating Temperature | -40°C to 85°C |
