Product Description
Description: Slide Switch • Current Rating: 300mA / 500mA • Voltage Rating: 24VDC / 12VDC • Circuit: SPDT • Switch Function: On-On • Mounting Type: Through Hole • Actuator Type Style: Standard • Actuator Height: 1.40mm • Travel: 1.60mm
| Product Information | Resources |
|
|
RoHS Compliant| Specifications |
| Product Attribute | Attribute Value |
| Current Rating | 300mA / 500mA |
| Voltage Rating | 24VDC / 12VDC |
| Circuit | SPDT |
| Switch Function | On-On |
| Mounting Type | Through Hole |
| Contact Material | Gold |
| Actuator Type Style | Standard |
| Actuator Height | 1.40mm |
| Operating Temperature | -40°C to 85°C |
| Electrical Life | 2,000 Cycles |
| Mechanical Life | 10,000 Cycles |
| Contact Resistance | 30m? Max |
| Insulation Resistance | 10,000M? Min @ 500VDC |
| Dielectric Strength | 500VAC for 1 Minute |
| Operating Temperature | -40°C to 85°C |
| Storage Temperature | -40°C to 85°C |
| Travel | 1.60mm |
| Series Features |
| EHJ1210 Series Slide Switch |

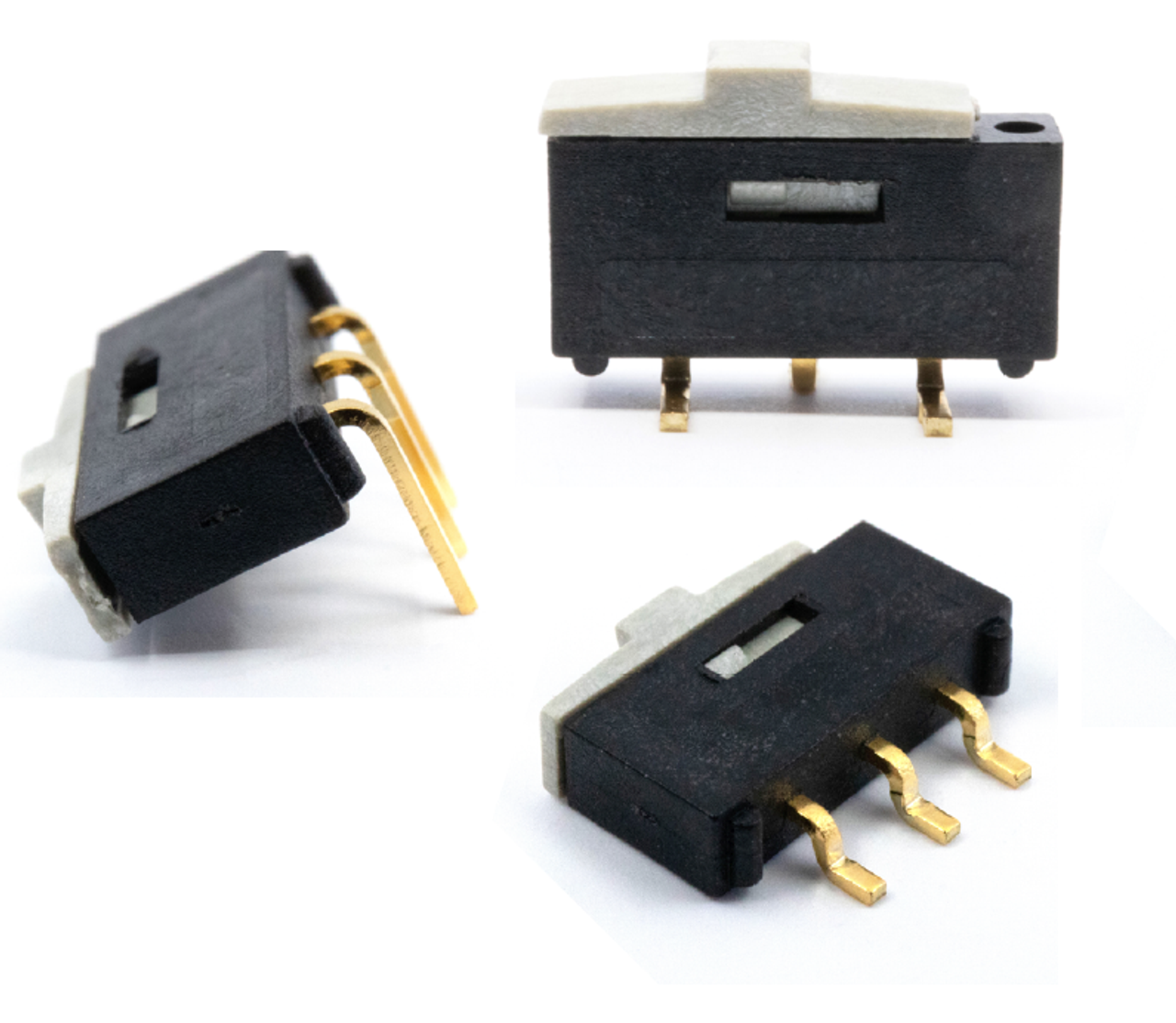

| Series Description: The EGJ1210 Series slide switch is an ideal solution for almost any applicationgiven its compact footprint and variety of terminal options, including surfacemount and through hole PC board design with the potential for right angleimplementation. The gull wing style termination is available in tape and reelpackaging. |
|
