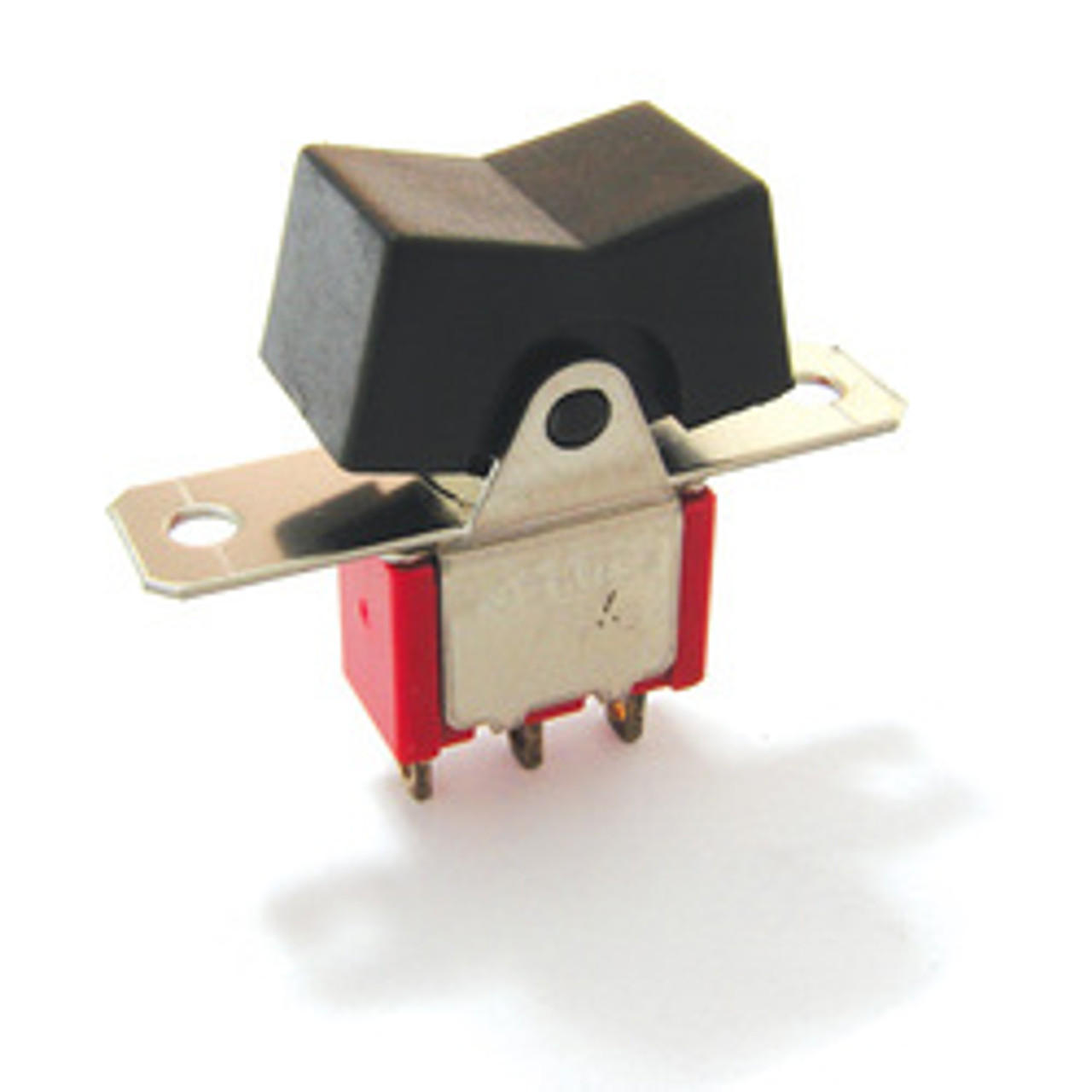

To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | E-Switch |
| Manufacturer Product Number | 300DP3J3VS2QE |
| Description | Rocker Switch; DPDT; On-Off-On; 5A (AC/DC); 120 V; 28 V; Concave (Standard V); PC Pin |
| Datasheet | Download Datasheet |
| Drawing | Download Dimensional Drawing |
The E-Switch 300DP3J3VS2QE is a DPDT rocker switch with On-Off-On action. It is rated 5A (AC/DC) at 120 V AC and 28 V DC.
It has a concave (standard V) actuator.
It mounts through-hole on a PC board and has PC pin terminals. Operating temperature is -30°C to 85°C. It has epoxy sealed terminals.
| Category | |
| Manufacturer | E-Switch |
| Circuit | DPDT |
| Switch Function | On-Off-On |
| Current Rating | 5A (AC/DC) |
| Voltage Rating AC | 120 V |
| Voltage Rating DC | 28 V |
| Actuator Type | Concave (Standard V) |
| Actuator Marking | No Marking |
| Mounting Type | Through Hole |
| Termination Style | PC Pin |
| Operating Temperature | -30°C ~ 85°C |
| Features | Epoxy Sealed Terminals |
