Product Description
Description: Power Relays • Coil Voltage: 12 VDC • Contact Configuration : 2C DPDT • Current : 10 Amps • Mounting : Plug-In • Operating Function : 2 Coil Latching • Attributes: 11-Pin Round
| Product Information | Resources |
|
|
RoHS Compliant| Specifications |
| Product Attribute | Attribute Value |
| Coil Voltage | 12 VDC |
| Contact Configuration | 2C DPDT |
| Current | 10 Amps |
| Mounting | Plug-In |
| Operating Function | 2 Coil Latching |
| Attributes | 11-Pin Round |
| Materials | 5 Amp: 1/8” Diameter Moveable Fine Silver|3/16” Diameter Stationary Fine Silver 10 Amp: 3/16” Diameter Moveable Silver Cadmium Oxide | 3/16” Diameter Stationary Fine Silver Gold Flash is Standard on all Contacts Gold Diffused Available on Special Order - Min Qty. Req’d |
| Expected Life | Electrical at Rated Load (Min) 100,000 Operations | Mechanical Life 10,000,000 Operations |
| Dielectric Strength | 800 VRMS, 60 Hz Between Contacts | 1500 VRMS, 60 Hz Between Other Elements |
| Coil Voltages | AC: Up to 277 Volts/60 Hz | DC: Up to 125 Volts |
| Coil Treatment | Molded Rynite® PET Std. Class F |
| Insulation Resistance | 100 Megohms Minimum |
| UL Insulation System File No. | E74443 S155D 155°C Total Temperature Std. (Covers S105 Class A and S130D Class B Requirements) |
| Pick Up (at 25°C) | AC Volts 85% or Less of Nominal | DC Volts 75% or Less of Nominal |
| Operate Time | Approx. 20 Milliseconds |
| Release Time | Approx. 20 Milliseconds |
| Operating Ambient | AC: -45° to 70° | DC: -45° to 85°C |
| Coil Temperature Rise | (25°C Ambient - Continuous Duty) AC: 45°C Approx. @ 60Hz - Use at 50 Hz will cause slight increase in Coil Rise DC: 45°C Approx. |
| Terminals | Octal type with 8, 11, 20 pins |
| Cover | Polycarbonate- Flammability Rating 94V2 |
| Weight | All Versions Approx. 8.6 oz. (244 g) |
| Series Features |

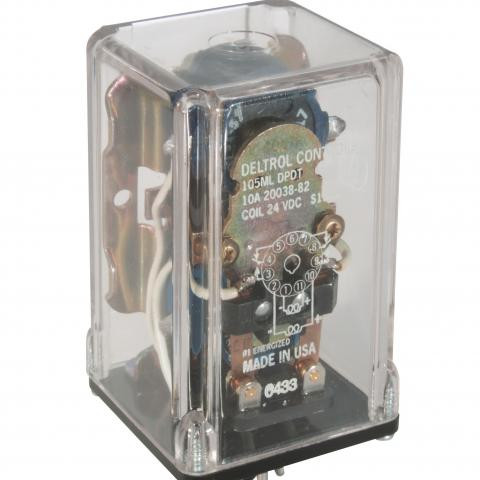

| 105ML Series Magnetic Latching Relay 5 & 10 Amp Plug-In Octal Base |
| Series Description: Magnetic Latching relay that controls electrical loads |
|
