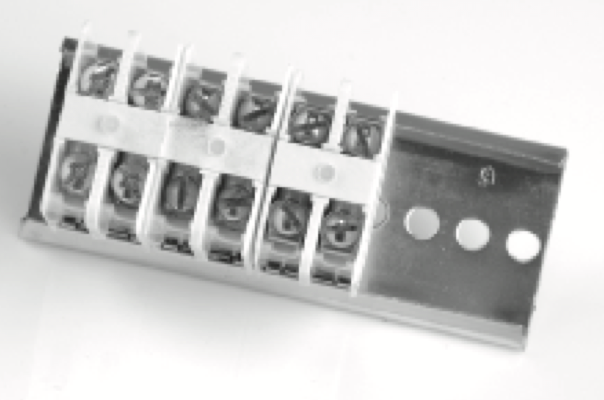

  • Curtis Industries 2PDSWSP Barrier Style Terminal Block
    • Curtis Industries 2PDSWSP Barrier Style Terminal Block

    Curtis Industries 2PDSWSP

    Curtis Industries

    $0.00

    This item is out of stock. Please submit an RFQ or call 800-526-5376 for pricing and delivery.

    Bulk Pricing

    Qty.Standard Price
    1 25 50 200 400 600
    $7.08 $6.54 $6.30 $5.31 $5.15 $4.86
    Request a Quote
    Technical Help

    Product Description

    Barrier Style Terminal Block • Pitch: 0.375" (9.53mm) • Number of Circuits: 2 • Number of Rows: 2 • Barrier Type: 2 Wall (Dual) • Features: - • Bottom Termination: Closed • Top Termination: Screws • Hardware: - • Current Rating (Amps): 25A • Wire Gauge: 14-22 AWG

          Product Information       Resources
    ManufacturerCurtis Industries
    Product Category Terminals Block
    Product Sub Category Barrier Style Terminal Block
    SeriesDSW Series

      Download Datasheet

      RoHS Compliant
          Specifications
    Product Attribute
    		Attribute Value
    Pitch0.375" (9.53mm)
    Number of Circuits2
    Number of Rows2
    Barrier Type2 Wall (Dual)
    Features-
    Bottom TerminationClosed
    Top TerminationScrews
    Hardware-
    Current Rating (Amps)25A
    Voltage Rating600V
    Wire Gauge14-22 AWG
    Tightening Torque12 in.-lbs.
    MaterialPolypropylene
    Continuous Use Temp. (UL Index)125° C (257 F)
          Series Features
    Series SW & DSW .375" (9 .52mm) Center-to-Center Spacing
    Series Description:
    • Snap-In Track-Type Concept – To assemble two or three-pole modules simultaneously, simply insert one edge of the module under the flange of the track and with very little pressure snap into place . To remove, push center section of spring toward molding . Module will “pop free .”
    • otal Modular Principle – Two and three-pole nylon modules are complete with white fiber marking strips and retaining springs
    • Reduced Inventory – No end moldings, mounting brackets or metal mounting clamps are needed for assembly .
    • Compact Design –3/8" center-to-center terminals provide compact circuit density . 32 poles per foot – 192 per six foot length .
    • Terminal Flexibility – Three different terminal variations are available . Ratings up to 50A/600V .
    • Durable Modular Construction – All SW models feature moldings of break-resistant nylon .
    • May be pre-assembled on track
    • Wire Sizes – Types SWS strap screw terminal with No . 6-32 screws . UL recognized for No . 22AWG to No . 14AWG . Type SWT tubular terminal with No . 10-32 screws . UL recognized for No . 16AWG to No . 8AWG . Type SWTC tubular clamp terminal with No . 10-32 screws . UL recognized for No . 22AWG to No . 8AWG .
    • Recognition and Listing – UL recognized and CSA certified
