To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Curtis Industries |
| Manufacturer Product Number | F2700FB03 |
| Description | EMI Filter; Power Entry Module; 3A; Fused IEC Receptacle; Wire Leads; 5mm x 20mm |
| Datasheet | Download Datasheet |

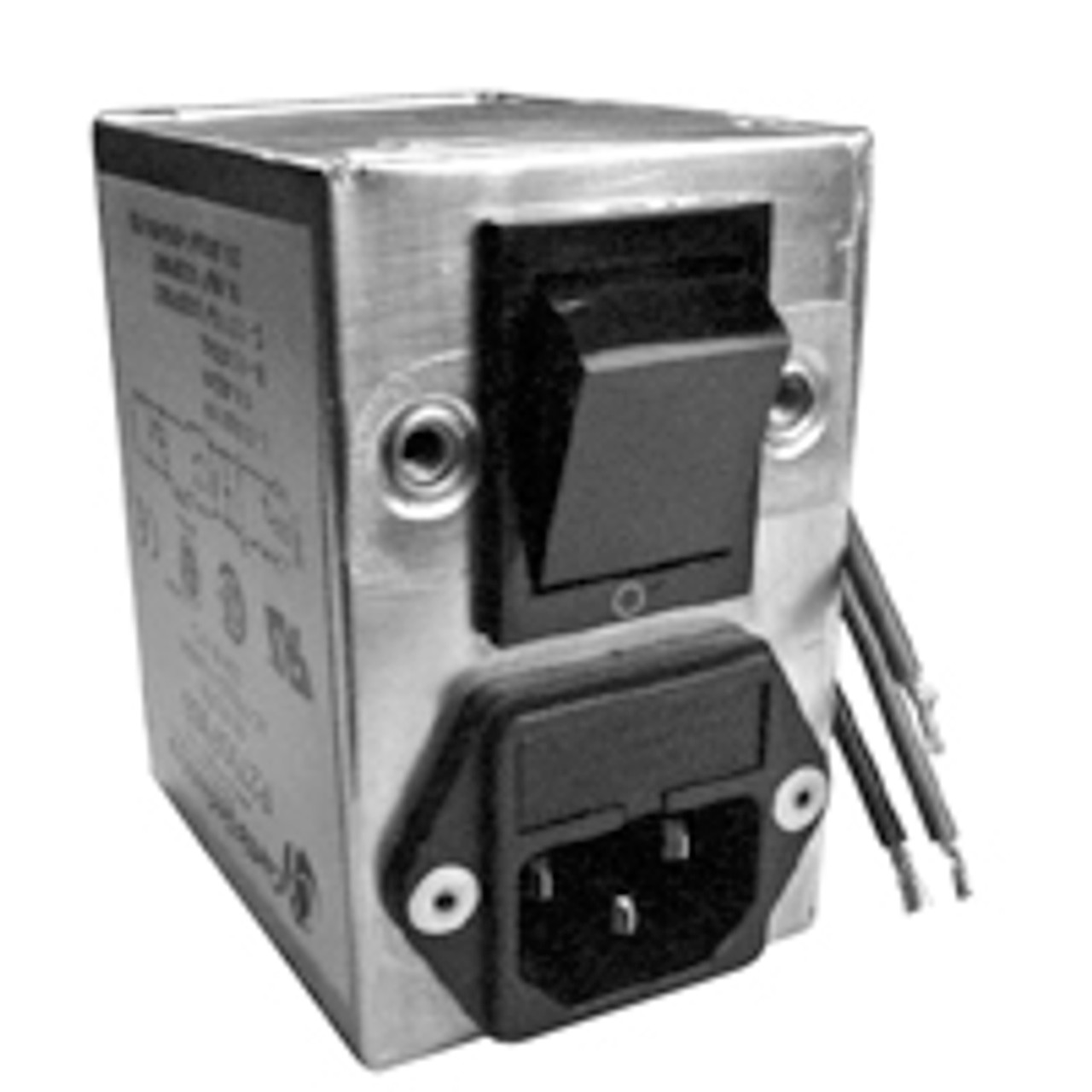

The Curtis Industries F2700FB03 is a power entry module rated 3A at 115VAC and 2A at 250VAC, 250V AC max, 50/60 Hz. Leakage current is 0.25mA @ 115VAC/60Hz, 0.40mA @ 250VAC/50Hz.
It connects by fused IEC receptacle on the line side and wire leads on the load side. It has a 5mm x 20mm fuse holder. It measures 1.93" (49.0mm) wide, 3.02" (76.7mm) high, 2.49" (63.2mm) deep.
Hipot: 1500VAC Line to Ground, 1768VDC Line to Line (1 min). Operating temperature: 40°C Max at Rated Current. Approvals: UL Recognized, CSA, TÜV, CE.
| Category | |
| Manufacturer | Curtis Industries |
