| Manufacturer | Cooltron |
| Manufacturer Product Number | FA1738B22T7C-51 |
| Description | AC Axial Fan; 172x150x38mm; 198.0/225.0CFM);58.0/62.0(dBA); 230V; DC Aluminum, Black; Term |
| Datasheet | Download Datasheet |

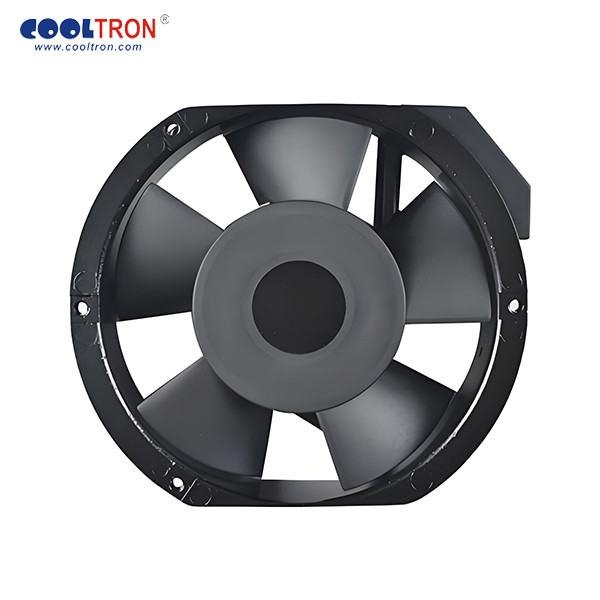

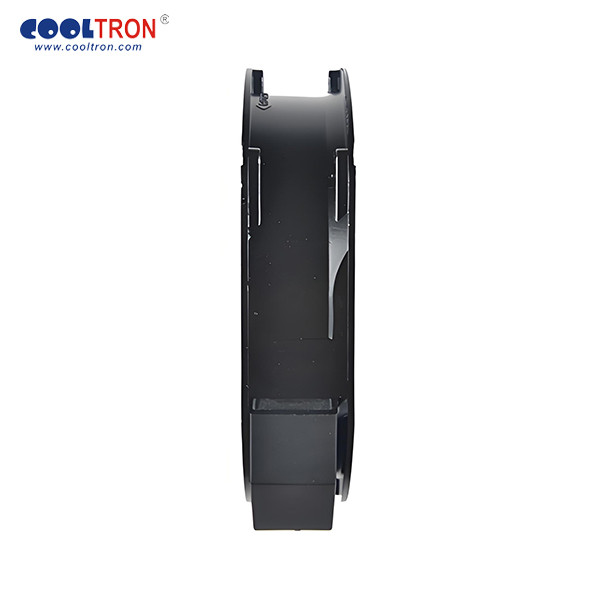

AC Axial Fan • Size: 172x150x38mm • Housing: Die-Cast Aluminum, Painted Black • Blade: Thermoplastic PBT, UL 94V-0 • Voltage (VAC): 230 • AirFlow (CFM): 198.0/225.0 • Static Pressure (mm-H2O): 16.3/11.9 • Noise (dBA): 58.0/62.0 • Speed (RPM): 2,900/3,400 • Connection: Terminal
| Category | |
| Manufacturer | Cooltron |
| Size | 172x150x38mm |
| Housing | Die-Cast Aluminum, Painted Black |
| Blade | Thermoplastic PBT, UL 94V-0 |
| Insulation Resistance | 100MΩ, 500VDC/min between bare wire and frame |
| Dielectric Strength | 1500VAC for one minutue |
| Operation Temperature | -20oC~70oC(Humidity 35%-85%RH) |
| Storage Temperature | -40oC~85oC(Humidity 35%-85%RH) |
| Motor Protection | Thermally Protected |
| Voltage (VAC) | 230 |
| Frequency (Hz) | 50/60 |
| AirFlow (CFM) | 198.0/225.0 |
| Static Pressure (mm-H2O) | 16.3/11.9 |
| Noise (dBA) | 58.0/62.0 |
| Speed (RPM) | 2,900/3,400 |
| Current (mA) | 110/140 |
| Power (W) | 25/31 |
| Connection | Terminal |
