| Manufacturer | Cooltron |
| Manufacturer Product Number | FA1738B11T7C-31 |

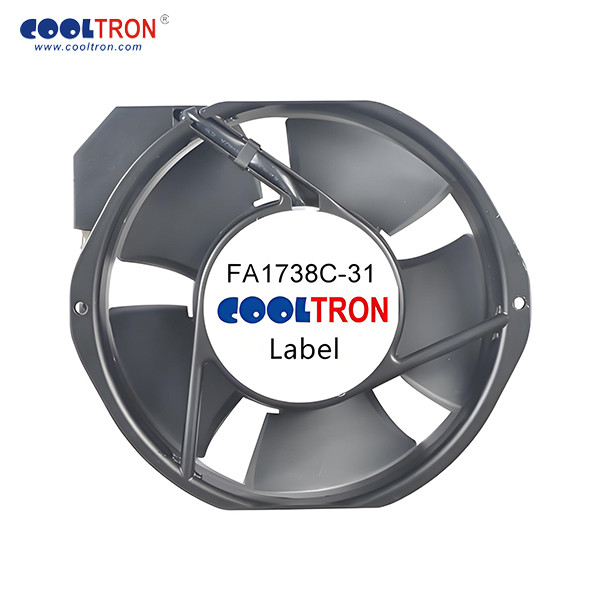

| Description | AC Axial Fan; 170x150x38mm; 168.5/201.0CFM);56.1/60.1(dBA); 115V; DC Aluminum, Black; Term |
| Datasheet | Download Datasheet |
AC Axial Fan • Size: 170x150x38mm • Housing: Die-Cast Aluminum, Painted Black • Blade: Thermoplastic PBT, UL 94V-0 • Voltage (VAC): 115 • AirFlow (CFM): 168.5/201.0 • Static Pressure (mm-H2O): 17.0/19.8 • Noise (dBA): 56.1/60.1 • Speed (RPM): 2,850/3,300 • Connection: Terminal
| Category | |
| Manufacturer | Cooltron |
| Size | 170x150x38mm |
| Housing | Die-Cast Aluminum, Painted Black |
| Blade | Thermoplastic PBT, UL 94V-0 |
| Insulation Resistance | 100MΩ, 500VDC/min between bare wire and frame |
| Dielectric Strength | 1500VAC for one minutue |
| Operation Temperature | -10oC~70oC(Humidity 35%-85%RH) |
| Storage Temperature | -40oC~85oC(Humidity 35%-85%RH) |
| Motor Protection | Thermally Protected |
| Voltage (VAC) | 115 |
| Frequency (Hz) | 50/60 |
| AirFlow (CFM) | 168.5/201.0 |
| Static Pressure (mm-H2O) | 17.0/19.8 |
| Noise (dBA) | 56.1/60.1 |
| Speed (RPM) | 2,850/3,300 |
| Current (mA) | 250/260 |
| Power (W) | 30/31 |
| Connection | Terminal |
