To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Cooltron |
| Manufacturer Product Number | FA1738B11T5-96 |
| Description | AC Axial Fan; 172x150x38mm; 107.6/97.6CFM); 45.3/42.4(dBA); 115V; DC Aluminum, Black; Term |
| Datasheet | Download Datasheet |

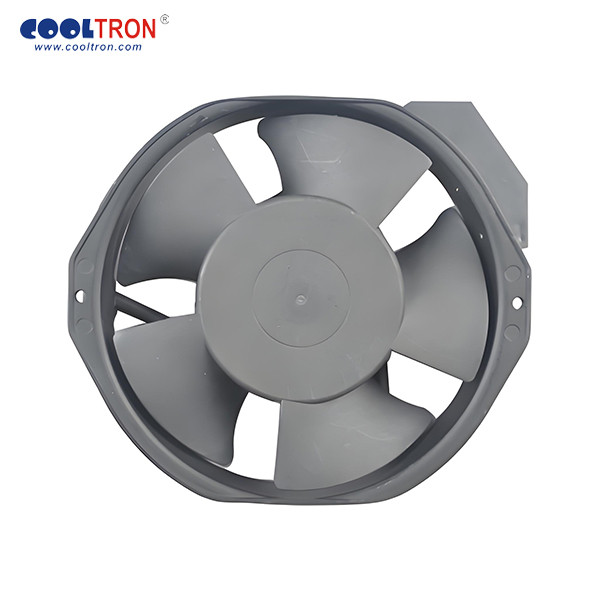

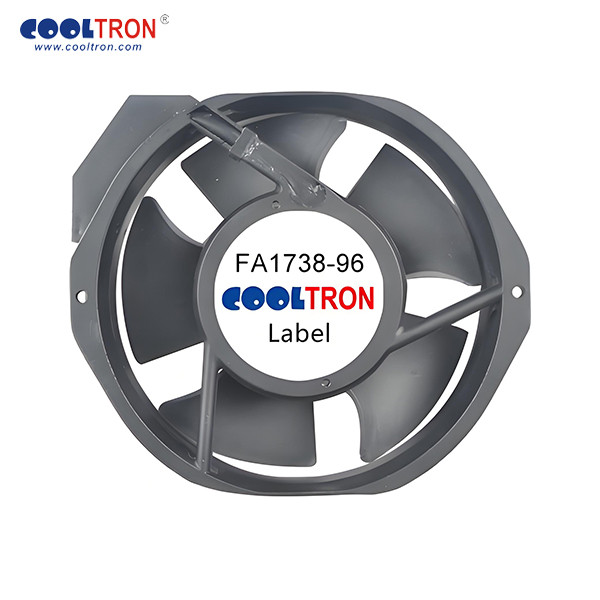

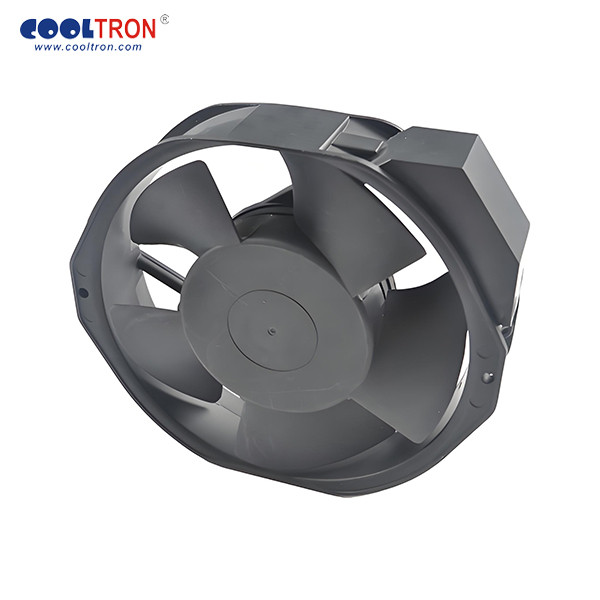

AC Axial Fan • Size: 172x150x38mm • Housing: Die-Cast Aluminum, Painted Black • Blade: Thermoplastic PBT, UL 94V-0 • Voltage (VAC): 115 • AirFlow (CFM): 107.6/97.6 • Static Pressure (mm-H2O): 8.2/7.2 • Noise (dBA): 45.3/42.4 • Speed (RPM): 2,350/2,100 • Connection: Terminal
| Category | |
| Manufacturer | Cooltron |
| Size | 172x150x38mm |
| Housing | Die-Cast Aluminum, Painted Black |
| Blade | Thermoplastic PBT, UL 94V-0 |
| Insulation Resistance | 100MΩ, 500VDC/min between bare wire and frame |
| Dielectric Strength | 1500VAC for one minutue |
| Operation Temperature | -10oC~70oC(Humidity 35%-85%RH) |
| Storage Temperature | -40oC~85oC(Humidity 35%-85%RH) |
| Motor Protection | Impedance Protected |
| Voltage (VAC) | 115 |
| Frequency (Hz) | 50/60 |
| AirFlow (CFM) | 107.6/97.6 |
| Static Pressure (mm-H2O) | 8.2/7.2 |
| Noise (dBA) | 45.3/42.4 |
| Speed (RPM) | 2,350/2,100 |
| Current (mA) | 310/300 |
| Power (W) | 27/26 |
| Connection | Terminal |
