To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Cooltron |
| Manufacturer Product Number | FD7010S12T3-71 |

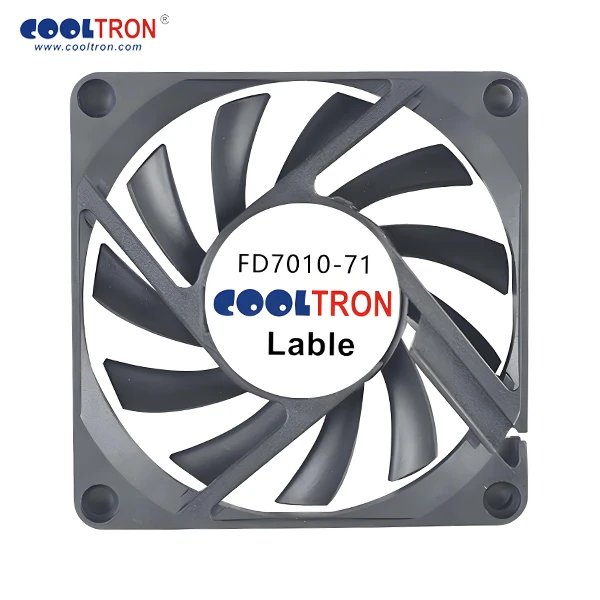

| Description | DC Axial Fan; 70x70x10mm; 12 VDC; 15.10(cfm); 24.60(dBA); Sleeve; Terminal; PBT UL 94V-0 |
| Datasheet | Download Datasheet |
DC Axial Fan • Fan Size: 70x70x10mm • Bearing: Sleeve • Voltage: 12 VDC • Lead Type: Terminal • Air Flow (CFM): 15.10 • Static Pressure: 1.30 • Noise (dBA): 24.60 • Speed (RPM): 2,500
| Category | |
| Manufacturer | Cooltron |
| Fan Size | 70x70x10mm |
| Bearing | Sleeve |
| Voltage | 12 VDC |
| Lead Type | Terminal |
| Speed | Low |
| Special Functions | - |
| Connectors | - |
| Housing/Blade: | Thermoplastic PBT, UL 94V-0 |
| Insulation Resistan: | 10MΩ, 500VDC/min between bare wire and frame |
| Dielectric Strength: | 5mA max. 500VAC/min between bare wire and frame |
| Operation Temp: | -10℃~70℃(Humidity 35%-85%RH) |
| Storage Temp: | -40℃~70℃(Humidity 35%-85%RH) |
| Lead Wire: | UL Type #26 AWG |
| Operating Voltage | 9.0~13.2 |
| Air Flow (CFM) | 15.10 |
| Static Pressure | 1.30 |
| Noise (dBA) | 24.60 |
| Speed (RPM) | 2,500 |
