To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Cooltron |
| Manufacturer Product Number | FD7010L12W5-71 |

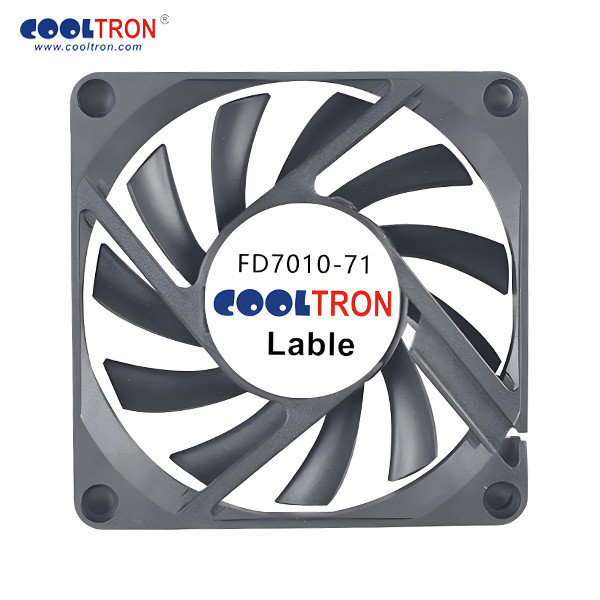

| Description | DC Axial Fan; 70x70x10mm; 12 VDC; 16.20(cfm); 29.00(dBA); Long Life; Wire Lead; PBT94V-0 |
| Datasheet | Download Datasheet |
DC Axial Fan • Fan Size: 70x70x10mm • Bearing: Long Life • Voltage: 12 VDC • Lead Type: Wire Lead • Air Flow (CFM): 16.20 • Static Pressure: 1.80 • Noise (dBA): 29.00 • Speed (RPM): 3,000
| Category | |
| Manufacturer | Cooltron |
| Fan Size | 70x70x10mm |
| Bearing | Long Life |
| Voltage | 12 VDC |
| Lead Type | Wire Lead |
| Speed | Medium |
| Special Functions | - |
| Connectors | - |
| Housing/Blade: | Thermoplastic PBT, UL 94V-0 |
| Insulation Resistan: | 10MΩ, 500VDC/min between bare wire and frame |
| Dielectric Strength: | 5mA max. 500VAC/min between bare wire and frame |
| Operation Temp: | -10℃~70℃(Humidity 35%-85%RH) |
| Storage Temp: | -40℃~70℃(Humidity 35%-85%RH) |
| Lead Wire: | UL Type #26 AWG |
| Operating Voltage | 9.0~13.2 |
| Air Flow (CFM) | 16.20 |
| Static Pressure | 1.80 |
| Noise (dBA) | 29.00 |
| Speed (RPM) | 3,000 |
