To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Cooltron |
| Manufacturer Product Number | FD6025S24W5-88 |

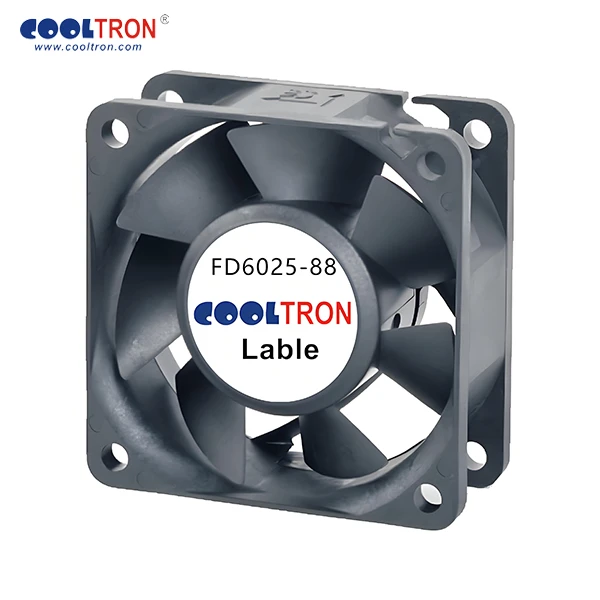

| Description | DC Axial Fan; 60x60x25mm; 24 VDC; 23.20(cfm); 25.70(dBA); Sleeve; Wire Lead; PBT UL94V-0 |
| Datasheet | Download Datasheet |
DC Axial Fan • Fan Size: 60x60x25mm • Bearing: Sleeve • Voltage: 24 VDC • Lead Type: Wire Lead • Air Flow (CFM): 23.20 • Static Pressure: 3.60 • Noise (dBA): 25.70 • Speed (RPM): 3,600
| Category | |
| Manufacturer | Cooltron |
| Fan Size | 60x60x25mm |
| Bearing | Sleeve |
| Voltage | 24 VDC |
| Lead Type | Wire Lead |
| Speed | Medium |
| Special Functions | - |
| Connectors | - |
| Housing/Blade: | Thermoplastic PBT, UL 94V-0 |
| Insulation Resistan: | 10MΩ, 500VDC/min between bare wire and frame |
| Dielectric Strength: | 5mA max. 500VAC/min between bare wire and frame |
| Operation Temp: | -10℃~70℃(Humidity 15%-65%RH) |
| Storage Temp: | -20℃~85℃(Humidity 15%-65%RH) |
| Lead Wire: | UL Type #26 AWG |
| Operating Voltage | 12.0~26.0 |
| Air Flow (CFM) | 23.20 |
| Static Pressure | 3.60 |
| Noise (dBA) | 25.70 |
| Speed (RPM) | 3,600 |
