To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Cooltron |
| Manufacturer Product Number | FD6025B24T3-87 |

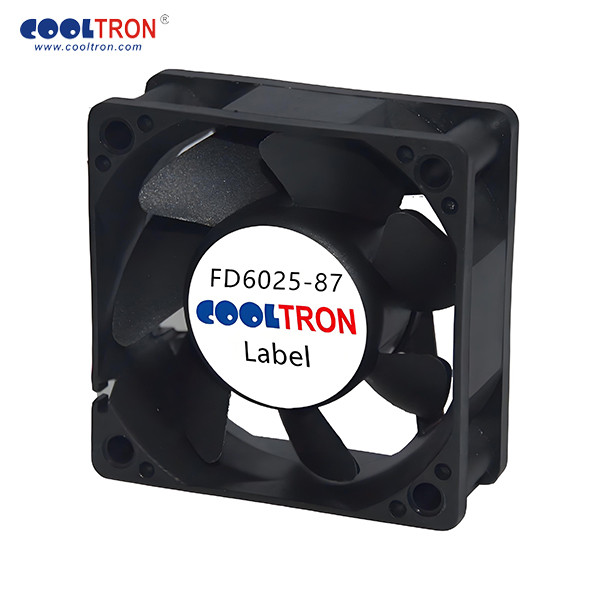

| Description | DC Axial Fan; 60x60x25mm; 24 VDC; 20.10(cfm); 34.10(dBA); Dual Ball; Terminal; PBT 94V-0 |
| Datasheet | Download Datasheet |
DC Axial Fan • Fan Size: 60x60x25mm • Bearing: Dual Ball • Voltage: 24 VDC • Lead Type: Terminal • Air Flow (CFM): 20.10 • Static Pressure: 4.30 • Noise (dBA): 34.10 • Speed (RPM): 3,600
| Category | |
| Manufacturer | Cooltron |
| Fan Size | 60x60x25mm |
| Bearing | Dual Ball |
| Voltage | 24 VDC |
| Lead Type | Terminal |
| Speed | Low |
| Special Functions | - |
| Connectors | - |
| Housing/Blade: | Thermoplastic PBT, UL 94V-0 |
| Insulation Resistan: | 10MΩ, 500VDC/min between bare wire and frame |
| Dielectric Strength: | 5mA max. 500VAC/min between bare wire and frame |
| Operation Temp: | -10℃~70℃(Humidity 5%-90%RH) |
| Storage Temp: | -40℃~80℃(Humidity 5%-95%RH) |
| Lead Wire: | UL Type #24 AWG |
| Operating Voltage | 12.0~26.4 |
| Air Flow (CFM) | 20.10 |
| Static Pressure | 4.30 |
| Noise (dBA) | 34.10 |
| Speed (RPM) | 3,600 |
