To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Cooltron |
| Manufacturer Product Number | FD6025B12W9-87 |

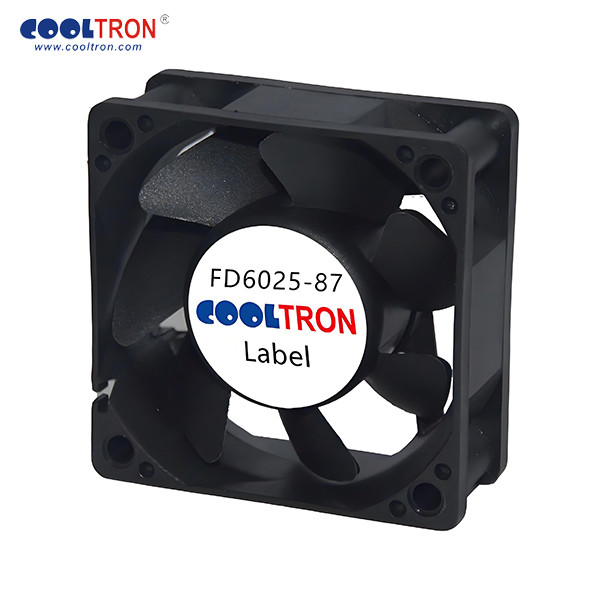

| Description | DC Axial Fan; 60x60x25mm; 12 VDC; 39.50(cfm); 41.80(dBA); Dual Ball; Wire Lead; PBT94V-0 |
| Datasheet | Download Datasheet |
DC Axial Fan • Fan Size: 60x60x25mm • Bearing: Dual Ball • Voltage: 12 VDC • Lead Type: Wire Lead • Air Flow (CFM): 39.50 • Static Pressure: 14.00 • Noise (dBA): 41.80 • Speed (RPM): 6,800
| Category | |
| Manufacturer | Cooltron |
| Fan Size | 60x60x25mm |
| Bearing | Dual Ball |
| Voltage | 12 VDC |
| Lead Type | Wire Lead |
| Speed | High High |
| Special Functions | - |
| Connectors | - |
| Housing/Blade: | Thermoplastic PBT, UL 94V-0 |
| Insulation Resistan: | 10MΩ, 500VDC/min between bare wire and frame |
| Dielectric Strength: | 5mA max. 500VAC/min between bare wire and frame |
| Operation Temp: | -10℃~70℃(Humidity 5%-90%RH) |
| Storage Temp: | -40℃~80℃(Humidity 5%-95%RH) |
| Lead Wire: | UL Type #24 AWG |
| Operating Voltage | 6.0~13.2 |
| Air Flow (CFM) | 39.50 |
| Static Pressure | 14.00 |
| Noise (dBA) | 41.80 |
| Speed (RPM) | 6,800 |
