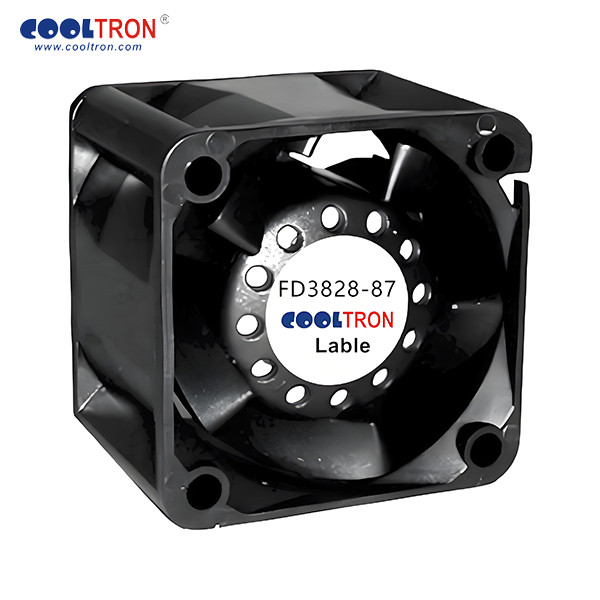

To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Cooltron |
| Manufacturer Product Number | FD3828B12T3-87 |
| Description | DC Axial Fan; 38x38x28mm; 12 VDC; 9.50(cfm); 37.40(dBA); Dual Ball; Terminal; PBT 94V-0 |
| Datasheet | Download Datasheet |
DC Axial Fan • Fan Size: 38x38x28mm • Bearing: Dual Ball • Voltage: 12 VDC • Lead Type: Terminal • Air Flow (CFM): 9.50 • Static Pressure: 10.0 • Noise (dBA): 37.40 • Speed (RPM): 8,000
| Category | |
| Manufacturer | Cooltron |
| Fan Size | 38x38x28mm |
| Bearing | Dual Ball |
| Voltage | 12 VDC |
| Lead Type | Terminal |
| Speed | Low |
| Special Functions | - |
| Connectors | - |
| Housing/Blade: | Thermoplastic PBT, UL 94V-0 |
| Insulation Resistan: | 10MΩ, 500VDC/min between bare wire and frame |
| Dielectric Strength: | 5mA max. 500VAC/min between bare wire and frame |
| Operation Temp: | -10℃~70℃(Humidity 5%-90%RH) |
| Storage Temp: | -40℃~75℃(Humidity 5%-95%RH) |
| Lead Wire: | UL Type #26 AWG |
| Operating Voltage | 7.0~13.2 |
| Air Flow (CFM) | 9.50 |
| Static Pressure | 10.0 |
| Noise (dBA) | 37.40 |
| Speed (RPM) | 8,000 |
