To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Cooltron |
| Manufacturer Product Number | FD1755B24T5-61 |

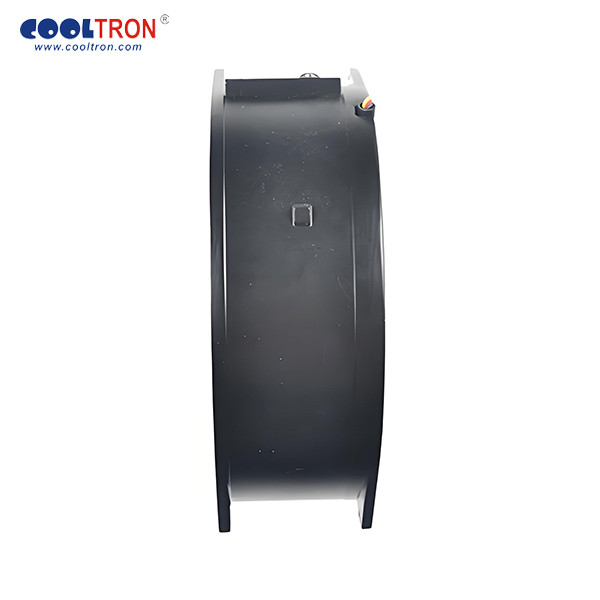

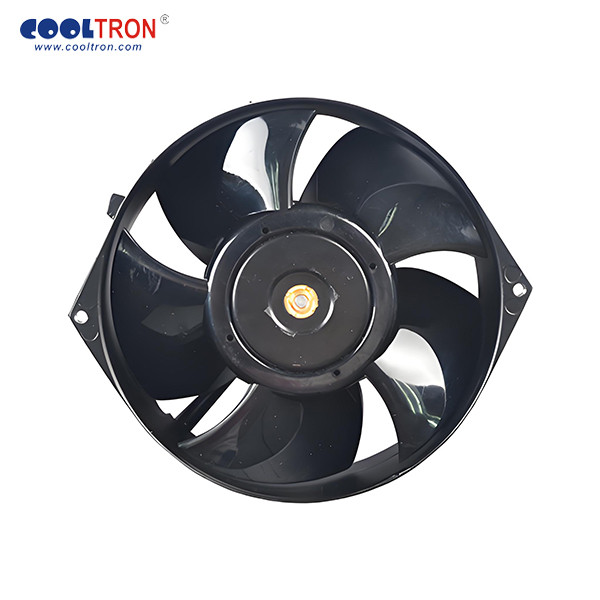

| Description | DC Axial Fan; 172x151x55mm; 24 VDC;259.60(cfm); 59.10(dBA); Dual Ball; Term; Al/PBT 94V-2 |
| Datasheet | Download Datasheet |
DC Axial Fan • Fan Size: 172x151x55mm • Bearing: Dual Ball • Voltage: 24 VDC • Lead Type: Terminal • Air Flow (CFM): 259.60 • Static Pressure: 31.20 • Noise (dBA): 59.10 • Speed (RPM): 3,800
| Category | |
| Manufacturer | Cooltron |
| Fan Size | 172x151x55mm |
| Bearing | Dual Ball |
| Voltage | 24 VDC |
| Lead Type | Terminal |
| Speed | Medium |
| Special Functions | - |
| Connectors | - |
| Housing/Blade: | Die-cast Aluminum, Blade: Thermoplastic PBT, UL 94V-2 |
| Insulation Resistan: | 10MΩ, 500VDC/min between bare wire and frame |
| Dielectric Strength: | 5mA max. 500VAC/min between bare wire and frame |
| Operation Temp: | -10℃~70℃(Humidity 35%-85%RH) |
| Storage Temp: | -40℃~70℃(Humidity 35%-85%RH) |
| Lead Wire: | UL Type #22 AWG |
| Operating Voltage | 15.0~27.6 |
| Air Flow (CFM) | 259.60 |
| Static Pressure | 31.20 |
| Noise (dBA) | 59.10 |
| Speed (RPM) | 3,800 |
