To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.

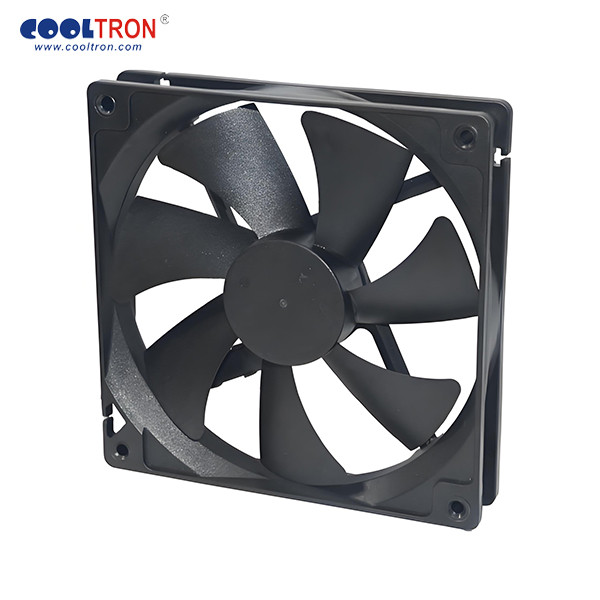

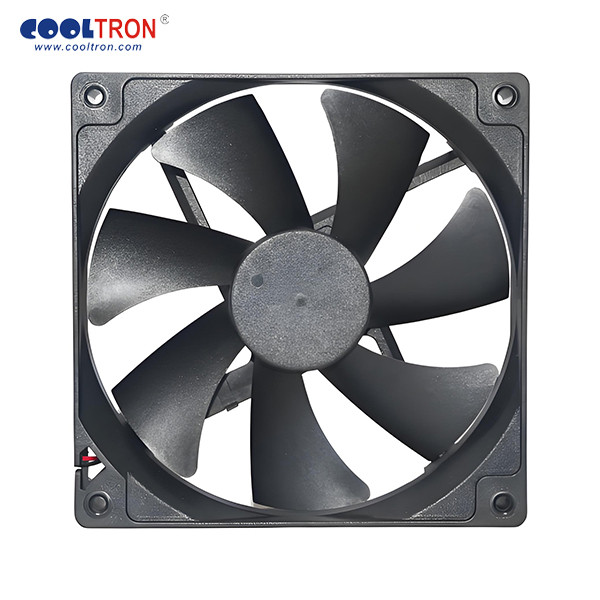

| Manufacturer | Cooltron |
| Manufacturer Product Number | FD1425B12W5-88 |
| Description | DC Axial Fan; 140x140x25mm; 12 VDC; 79.70(cfm); 27.20(dBA); Dual Ball; Wire Lead; PBT94V-0 |
| Datasheet | Download Datasheet |
DC Axial Fan • Fan Size: 140x140x25mm • Bearing: Dual Ball • Voltage: 12 VDC • Lead Type: Wire Lead • Air Flow (CFM): 79.70 • Static Pressure: 1.20 • Noise (dBA): 27.20 • Speed (RPM): 1,300
| Category | |
| Manufacturer | Cooltron |
| Fan Size | 140x140x25mm |
| Bearing | Dual Ball |
| Voltage | 12 VDC |
| Lead Type | Wire Lead |
| Speed | Medium |
| Special Functions | - |
| Connectors | - |
| Housing/Blade: | Thermoplastic PBT, UL 94V-0 |
| Insulation Resistan: | 10MΩ, 500VDC/min between bare wire and frame |
| Dielectric Strength: | 5mA max. 500VAC/min between bare wire and frame |
| Operation Temp: | -10℃~70℃(Humidity 15%-65%RH) |
| Storage Temp: | -20℃~85℃(Humidity 15%-65%RH) |
| Lead Wire: | UL Type #24 AWG |
| Operating Voltage | 4.0~13.8 |
| Air Flow (CFM) | 79.70 |
| Static Pressure | 1.20 |
| Noise (dBA) | 27.20 |
| Speed (RPM) | 1,300 |
